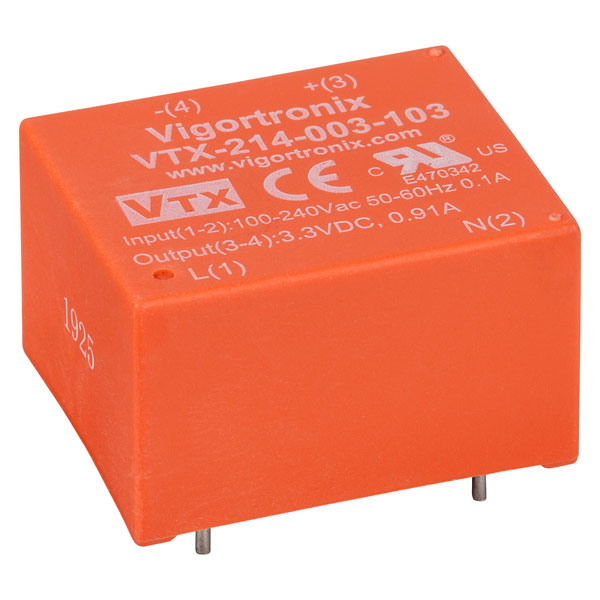

Vigortronix VTX-214-003-103 3W AC-DC Power Supply Single Output 3.3V

This AC-DC 4-Pin Power Supply with 3W Single Output from Vigortronix is a 3.3V transformer manufactured for use in applications where space is limited, thanks to the encapsulated design of the module which features a 'built-in' transformer.

Weighing just 30g, this PCB transformer is not only cost-effective, but also boasts a host of excellent features, such as the Pri/Sec full isolation, low standby power (<0.15W), -25°C to +70°C operating temperature (full load) and low ripple & noise, while offering over power, over voltage and short circuit protection.

For details of the Vigortronix VTX-214-PCB1 'Plug and Play' Universal AC-DC Converter Mounting Kit please see 84-2157.

• Orange colour
• 2 input pins and 2 output pins
• 3.3V DC output voltage range
• 900mA output current
• 3600Vrms dielectric strength
• UL94-V0 material
• EN61558, EN60950, CE, UL safety
• Efficiency typically 70% (40% for typical transformer)
• Manufacturer's part VTX-214-003-103
