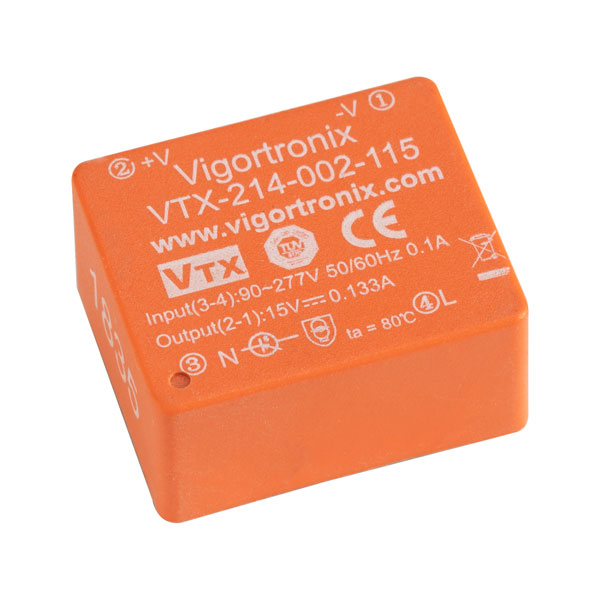

Vigortronix VTX-214-002-115 2W Low Profile AC-DC Converter 15V Output

The Vigortronix VTX-214-002-115 is a Low Profile AC-DC 2W Single Output Regulated 15VDC Converter that has been manufactured for use in applications where space is limited.

Weighing just 18g, this AC-DC Converter has a wide input voltage range of 90 to 264VAC, 47 to 63Hz.

This PCB Mountable converter is not only cost-effective, but also boasts a host of excellent features, such as the Pri/Sec full isolation, low standby power (<0.3W), -40°C to +70°C operating temperature (full load) and low ripple/noise, while offering over power, over voltage and short circuit protection.

• Colour: Orange
• 2W Low Profile: <14.5mm Height
• Compact Size: PCB Mount
• Single Output: Regulated
• Input: 90 to 264VAC, 47 to 63Hz
• Low Standby Power:<0.3W
• Low Ripple & Noise
• Fully Isolated: Pri - Sec >4200Vrms
• Insulation: Class II
• Materials: UL94-V0
• Safety: EN61558, EN60950, CE
• Supplied with a Current Rating of 2W
• Supplied with an Voltage Output of 15VDC
• Manufacturer's part: Vigortronix VTX-214-002-115
