TruOpto OSTCXBEAC1S RGB SMD LED Star Dome Lens 50/70/20lm

Name: TruOpto OSTCXBEAC1S RGB SMD LED Star Dome Lens 50/70/20lm
Brand: TruOpto
Price: 7.06 GBP
Availability: InStock

Order Code:

55-2269

Copy to clipboard

( Write a review )

Brand: TruOpto Copy to clipboard MPN: OSTCXBEAC1S Copy to clipboard

RoHS Compliant
Country of Origin: China
Free UK shipping available
View Full Product Range (2)

Report an error

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£7.06
25+	£6.45
100+	£5.58

Get a quote for large quantities here

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

95 in Stock, despatched same dayAdditional quantity lead time 4 months

Product Details
Data Sheets
Quick Quote

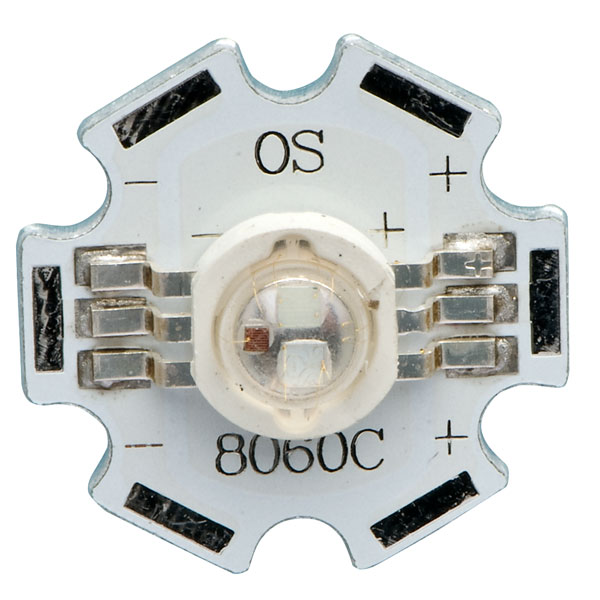

Commercial quality RGB power LED with a dome lens and ultra high brightness red, green and blue components that is mounted on to a surface mountable star type substrate. The features and performance of this LED lamp makes it ideal for a wide range of applications. The LED features 50lm red, 70lm green and 20lm blue brightness.

High luminous flux
Very energy efficient
Long operating life
Water clear lens
Viewing angle 120°
Superior ESD protection
Excellent UV resistance
REACH compliant
TUV certified

Depending on the application for which it is used, this product may require an additional heat sink.

Colour	Blue, green, red
Power	1.6/1.6/1.2W
Forward Voltage	3.3/3.3/2.5V
Forward Current	400/400/400mA
Luminous Intensity	20/70/50lm
Viewing Angle	120°
Dominant Wavelength	460/525/625nm
Dimensions	ø19.9 x 1.5mm
