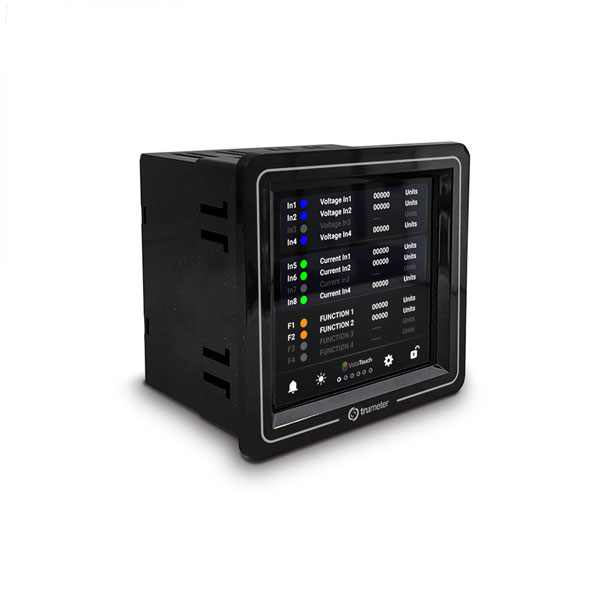

Trumeter VT-PROC-LV Vista Touch Process Meter 12-24V AC/DC 10W

The VT-PROC-LV Vista Touch Process Meter is an IoT-ready HD touch screen panel meter for use with 12-24V AC/DC power supplies and supports up to eight sensors (4x 4–20mA, 4x 0–10V) with 0.1% accuracy. It features programmable math functions and advanced non-linear scaling, for precise calculations and compensation for complex signals.

The VT-PROC-LV Vista Touch Process Meter (LV) is designed to consolidate multiple signals into a single monitoring hub in process applications. It supports up to eight sensors (four 4–20mA and four 0–10V) and features four programmable math functions as well as advanced non-linear scaling, enabling precise calculations and compensation for complex sensor behaviors.

Delivering 0.1% accuracy across the full input range, the LV model runs on 12–24V AC/DC and includes access to Trumeter Cloud for secure remote monitoring, data logging, and instant alerts via email or optional SMS.

A vibrant 70mm x 70mm HD touchscreen offers intuitive setup, custom scaling, alarm messages, and clear visualization with pre-configured gauge designs.

Connectivity is built-in, with Modbus® RTU/TCP, two form C relays, and a USB port for cloning configurations or local datalogging. With industry-standard ¼ DIN mounting and modular quick-connect terminals, integration into panels and equipment is fast and straightforward.

• Supports up to 8 sensors (4x 4-20mA and 4x 0-10V)
• Programmable math functions
• Advanced non-linear scaling
• Accuracy: 0.1%
• Local data logging via USB
• 65K full colour 70 x 70mm graphics display
• Intuitive touchscreen
• User programmable scale, custom alarms and messages
• Fully configurable from the front panel
• Load and save configuration data to a USB flash drive
• Free access to the IoT Trumeter Cloud, remote monitoring texts, emails and alarm notifications
• Modbus® RTU and TCP
• ¼ DIN industry standard mounting
• Ethernet and RS485 as standard
• Modular pluggable quick connect/disconnect connectors
