TruConnect 213919 3.5mm Low Profile 90 Degree 10 Way Terminal Block

TruConnect
Order Code:

21-3919

Brand: TruConnect MPN: 213919 EAN-13: 5053556020867

  • Quickly find another product in this range by No. of Ways:

Qty Unit Price (Ex VAT)
1+ £1.51
5+ £1.17
10+ £0.987
25+ £0.855
50+ £0.754
100+ £0.675
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
494 in stock, despatched same dayAdditional quantity lead time 5 months

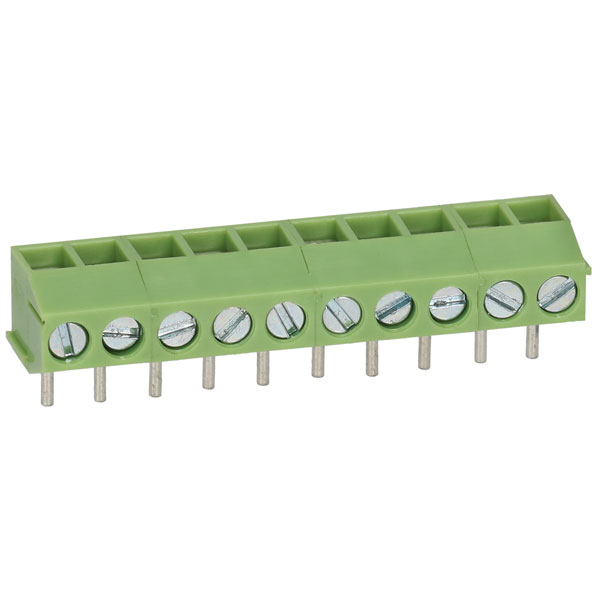

A horizontal mounting, moulded wire protector terminal block with 10 poles, 3.5mm pitch.


  • Low profile design
  • Horizontal orientation
  • Wire protector clamp style
  • Slotted screws
  • 24 to 18AWG
  • Rated voltage: 300V
  • Rated current: 7A
  • Moulded housing in green flame retardant PA66
  • Screws: zinc plated steel
  • Pin header: tin plated brass
  • Stainless steel wire guard
  • UL approved
Pitch 3.5mm
No. of Ways 10
Mounting Type Through Hole
Mounting Direction Horizontal
Wire Gauge (AWG) 24 to 18AWG
Wire Termination Screw, Wire Protector
Voltage Rating 300V
Current Rating 7A
Colour Green
Wire Gauge 1mm²
