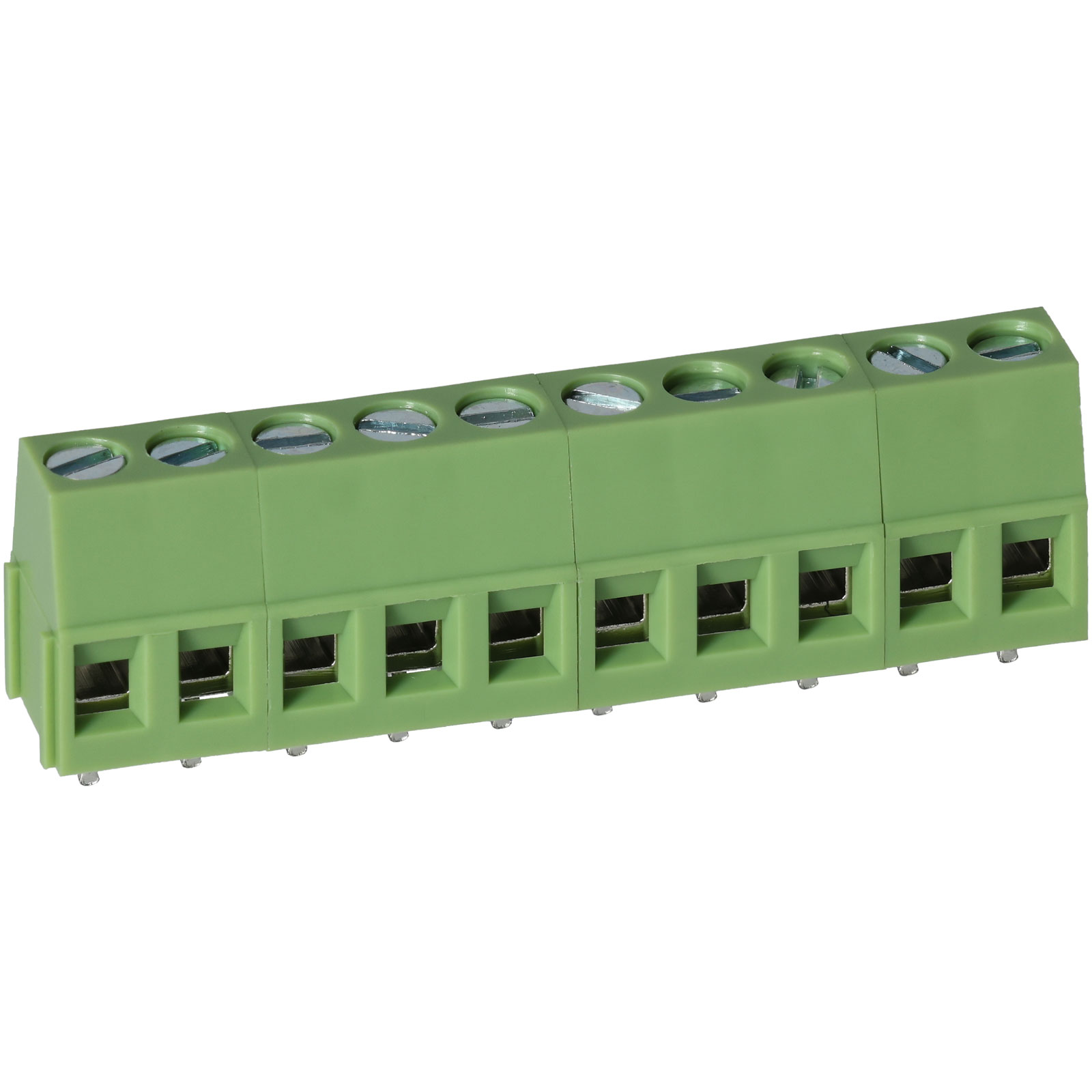

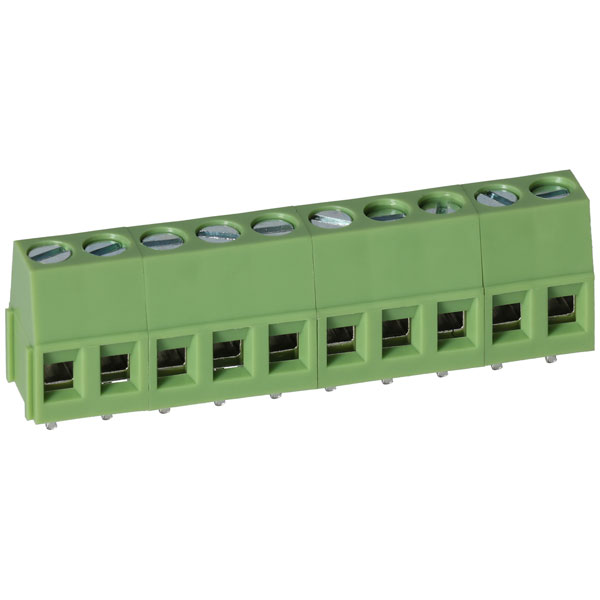

TruConnect 212227 5.0mm 10 Way Rising Clamp Terminal Block

TruConnect
MPN
212227
Brand
TruConnect
EAN-13
5053556020058
Order Code
21-2227
Country of Origin
China

  • Quickly find another product in this range by No. of Ways:

View Full Product Range (11)
Qty Unit Price (Ex VAT)
1+ £1.41
5+ £1.09
10+ £0.925
25+ £0.801
50+ £0.708
100+ £0.633
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Despatched same day - 498 in stockAdditional quantity lead time 5 months

Vertical mounting, moulded, rising clamp terminal block with 10 poles, 5mm pitch.
  • Vertical orientation
  • Interlocking (2-way and 3-way)
  • Rising clamp
  • Slotted screws
  • 24 to 12AWG (2.5mm²)
  • Rated voltage: 300V
  • Rated current: 15A
  • Moulded housing in green flame retardant PA66
  • Screws: M2.5, zinc plated steel
  • Pin header: tin plated brass
  • UL approved
Pitch 5mm
No. of Ways 10
Mounting Type Through Hole
Mounting Direction Vertical
Wire Gauge (AWG) 24 to 12AWG
Wire Termination Rising Clamp
Colour Green
Current Rating 15A
No. of Levels 1
Voltage Rating 300V
