TruConnect 211899 5.0mm 11 Way Low Profile 90deg Rising Clamp Terminal Block

TruConnect
Order Code:

21-1899

Brand: TruConnect MPN: 211899 EAN-13: 5053556020447

  • Quickly find another product in this range by Number of Ways:

Qty Unit Price (Ex VAT)
1+ £1.66
5+ £1.28
10+ £1.08
25+ £0.935
50+ £0.825
100+ £0.739
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
100 in stock, despatched same dayAdditional quantity lead time 5 months

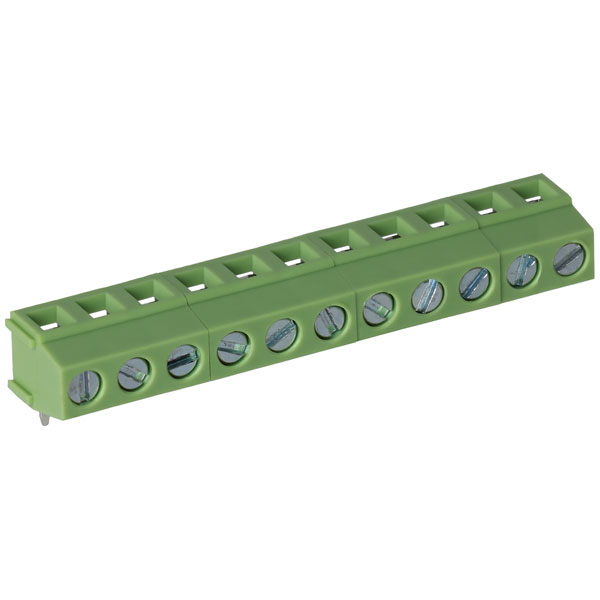

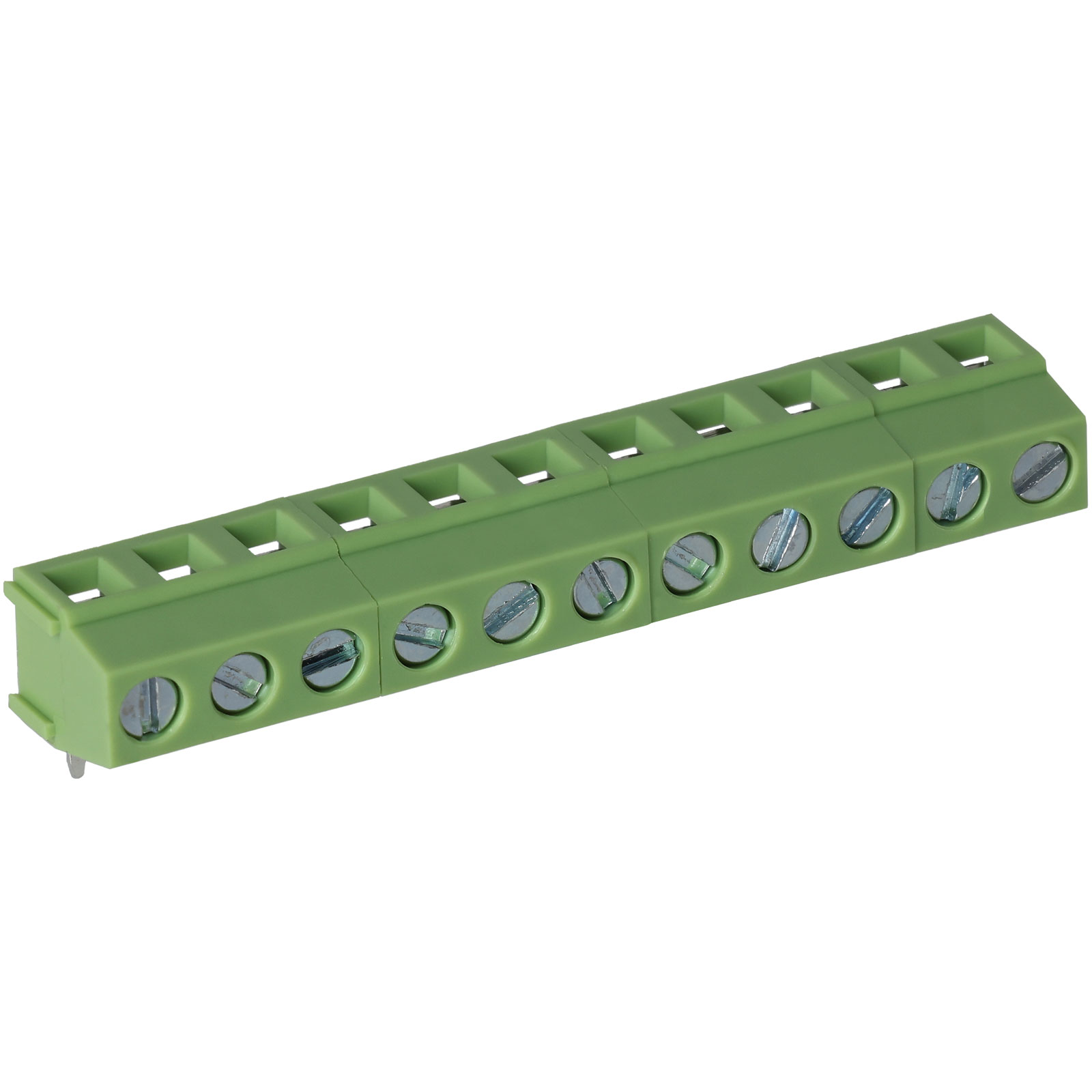

Low profile, horizontal mounting, moulded, rising clamp terminal block with 11 poles, 5mm pitch.


  • Low profile design
  • Interlocking (2-way and 3-way)
  • Horizontal orientation
  • Rising clamp
  • Slotted screws
  • 26 to 14AWG (1.5mm²)
  • Rated voltage: 300V
  • Rated current: 12A
  • Moulded housing in green flame retardant PA66
  • Screws: M3, zinc plated steel
  • Pin header: tin plated brass
  • UL approved
Pitch 5.0mm
Mounting Type Through Hole
Mounting Direction Horizontal
Wire Gauge (AWG) 26 to 14AWG
Wire Termination Rising clamp
Voltage Rating 300V
Current Rating 12A
Colour Green
Number of Ways 11
Wire Gauge 1.5mm²
