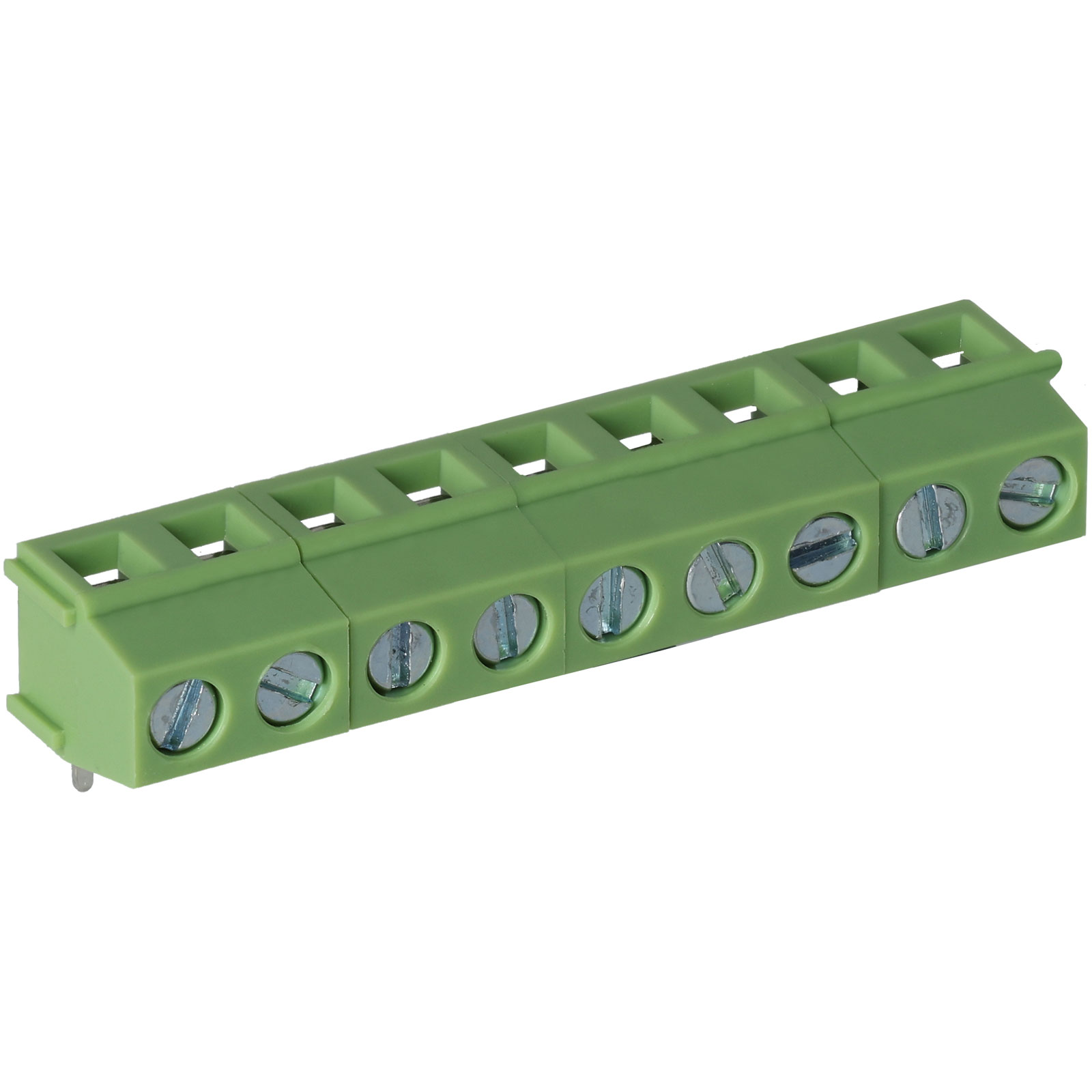

TruConnect 211898 5.0mm 9 Way Low Profile 90deg Rising Clamp Terminal Block

MPN: 211898
Brand: TruConnect
EAN-13: 5053556020430
Order Code: 21-1898
Country of Origin: China

RoHS Compliant
Free UK shipping available

Quickly find another product in this range by No. of Ways:

View Full Product Range (11)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£0.953
10+	£0.847
25+	£0.726
50+	£0.673
75+	£0.618
100+	£0.587

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched same day - 100 in stockAdditional quantity lead time 5 months

Product Details
Product Range
Data Sheets

Low profile, horizontal mounting, moulded, rising clamp terminal block with 9 poles, 5mm pitch.

Low profile design
Interlocking (2-way and 3-way)
Horizontal orientation
Rising clamp
Slotted screws
26 to 14AWG (1.5mm²)
Rated voltage: 300V
Rated current: 12A
Moulded housing in green flame retardant PA66
Screws: M3, zinc plated steel
Pin header: tin plated brass
UL approved

Pitch	5mm
No. of Ways	9
Mounting Type	Through Hole
Mounting Direction	Horizontal
Wire Gauge (AWG)	26 - 14 AWG
Wire Termination	Rising Clamp
Colour	Green
Current Rating	12A
No. of Levels	1
Voltage Rating	300V
