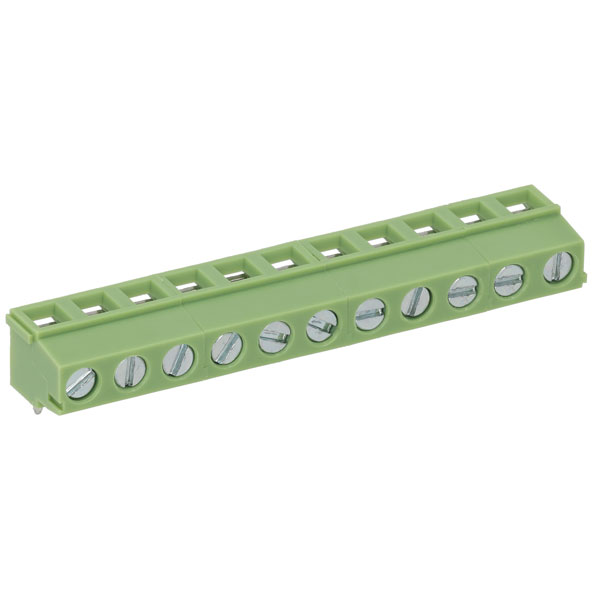

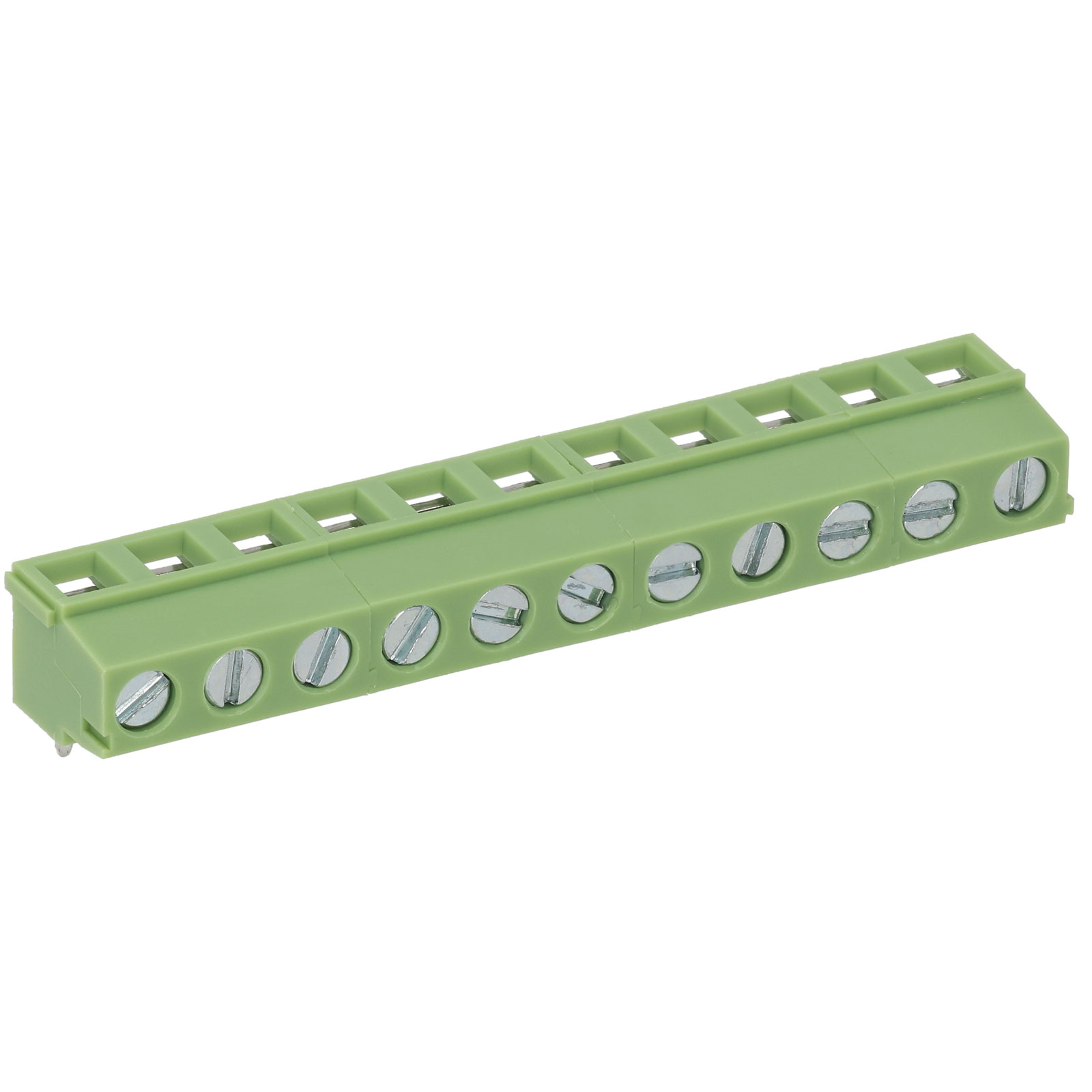

TruConnect 211752 5.08mm 90deg 11 Way Low Profile Rising Clamp Terminal Block

TruConnect
Order Code:

21-1752

Brand: TruConnect MPN: 211752 EAN-13: 5053556022502

  • Quickly find another product in this range by Number of Ways:

Qty Unit Price (Ex VAT)
1+ £1.52
5+ £1.18
10+ £0.995
25+ £0.862
50+ £0.761
100+ £0.681
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
100 in stock, despatched same dayAdditional quantity lead time 5 months

Low profile, horizontal mounting, moulded rising clamp terminal block with 11 poles, 5.08mm pitch.


  • Low profile design
  • Interlocking (2-way and 3-way)
  • Horizontal orientation
  • Rising clamp
  • Slotted screws
  • 26 to14AWG (1.5mm²)
  • Rated voltage: 300V
  • Rated current: 12A
  • Moulded housing in green flame retardant PA66
  • Screws: M3, zinc plated steel
  • Pin header: tin plated brass
  • UL approved
    • Pitch 5.08mm
    Mounting Type Through Hole
    Mounting Direction Horizontal
    Wire Gauge (AWG) 26 to 14AWG
    Wire Termination Rising Clamp
    Voltage Rating 300V
    Current Rating 12A
    Colour Green
    Number of Ways 11
    Wire Gauge 1.5mm²
