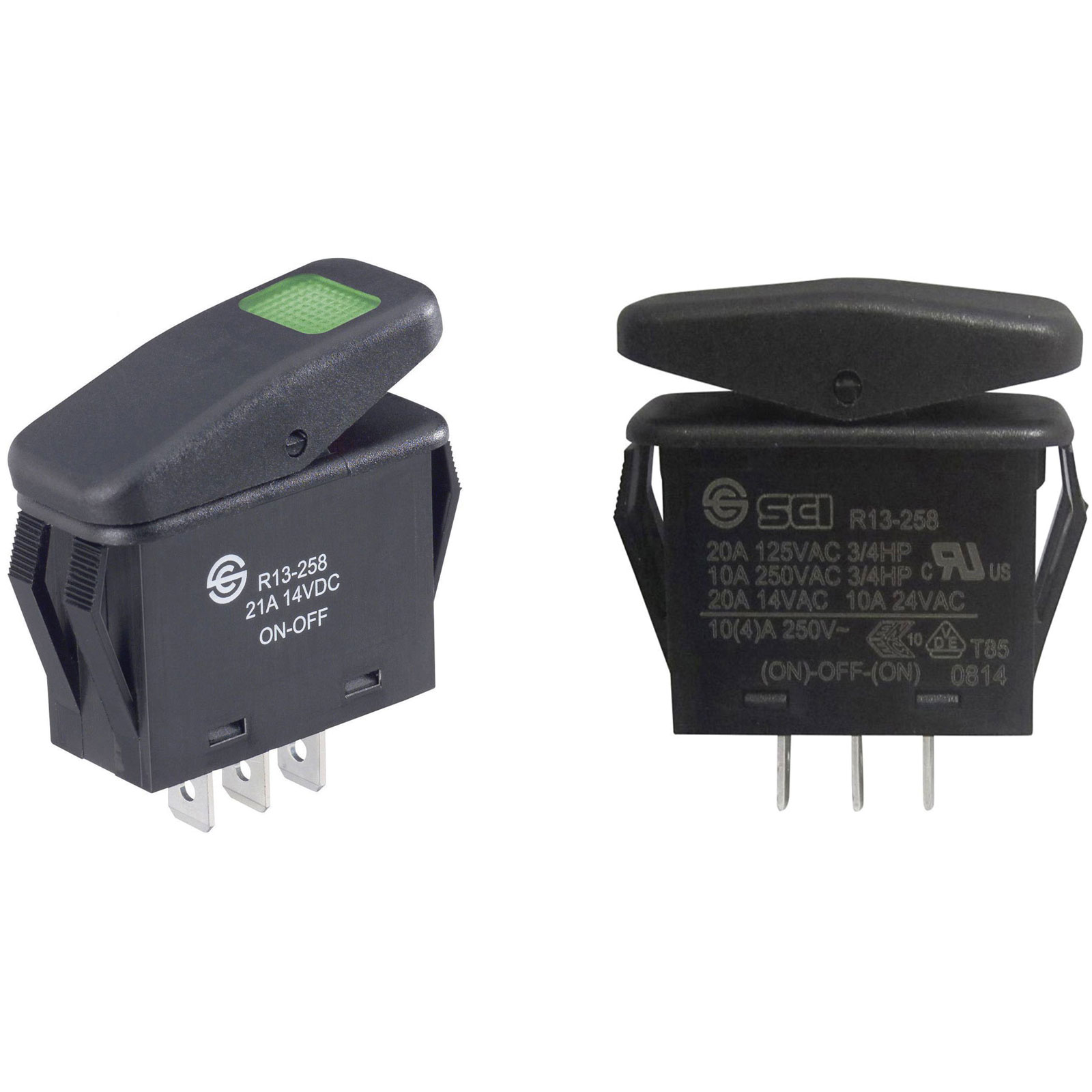

TRUCOMPONENTS Rocker Switch Quick Connect IP66 Range

The TRUCOMPONENTS 751594 Rocker Switch is a premium, panel-mount switch designed for applications requiring reliable Off/On control with visual feedback and enhanced protection.

This single-pole, single-throw (SPST) switch features an illuminated design, providing clear status indication. Its quick-connect terminals ensure efficient and secure installation, reducing setup time and enhancing reliability.

With an IP66 rating, the TRUCOMPONENTS 751594 offers superior protection against dust and water ingress, making it suitable for demanding environments.

Constructed with high-quality materials, this rocker switch delivers exceptional durability and long-lasting performance, ideal for use in industrial machinery, automotive systems, and consumer electronics.

The TRUCOMPONENTS 751595 Rocker Switch is a high-quality, panel-mount switch designed for applications requiring precise control and enhanced protection.

This single-pole, double-throw (SPDT) switch features an On/Off/On mechanism, allowing seamless switching between two circuits with an off position in the middle. Its quick-connect terminals ensure efficient and secure installation, reducing setup time and enhancing reliability.

With an IP66 rating, the TRUCOMPONENTS 751595 offers superior protection against dust and water ingress, making it suitable for demanding environments.

Constructed with premium materials, this rocker switch delivers exceptional durability and long-lasting performance, ideal for use in industrial machinery, automotive systems, and consumer electronics.

Description Image Product Buy Pricing (Ex VAT) Contact Configuration Switch Function Illumination Type Bulb Type Casing/button colour Illumination Colour(s) Voltage Rating Current Rating (Amps) Contact Resistance Dielectric Strength Front panel cut-out Front panel thickness Insulation Resistance IP Rating Material Max. temperature Min. temperature Print motif Termination Style Type
TruComponents 751594 Rocker switch,Off/On,SPST,Illuminated,Quick Connect,IP66
TruComponents 751594 Rocker switch,Off/On,SPST,Illuminated,Quick Connect,IP66
Standard range
Order code: 75-1594
MPN: 751594

430 in stock, despatched in 4 working days
1+ £4.27
5+ £3.97
10+ £3.70
25+ £3.47
50+ £3.27
100+ £3.14
Price per unit Ex VAT
1 x Off/On latch Spot lighting LED (monochrome) Green 14V DC 21A 50mΩ 1500 V/AC 1 minute 36.8 x 15.2 mm 5mm 100 MΩ/500V DC IP66 Polyamide +80°C -20°C None Type C CEE 7/16 plug 6.3 mm Rocker Switch
TruComponents 751595 Rocker switch,P/Mount,On/Off/On,SPDT,Quick Connect,IP66
TruComponents 751595 Rocker switch,P/Mount,On/Off/On,SPDT,Quick Connect,IP66
Extended range
Order code: 75-1595
MPN: 751595

Available to back orderBack order, lead time 4 months
2+ £3.11
5+ £2.89
10+ £2.69
25+ £2.53
50+ £2.38
100+ £2.29
Price per unit Ex VAT
1 x (On)/Off/(On) momentary/0/momentary None Black 14V AC 21A 50mΩ 1500 V/AC 1 minute 36.8 x 15.2 mm 5mm 100 MΩ/500V DC IP66 Polyamide +80°C -20°C None Type C CEE 7/16 plug 6.3 mm Rocker Switch
