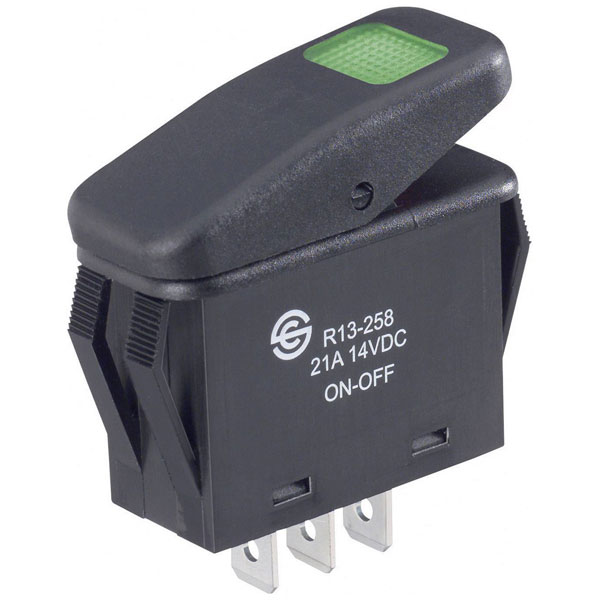

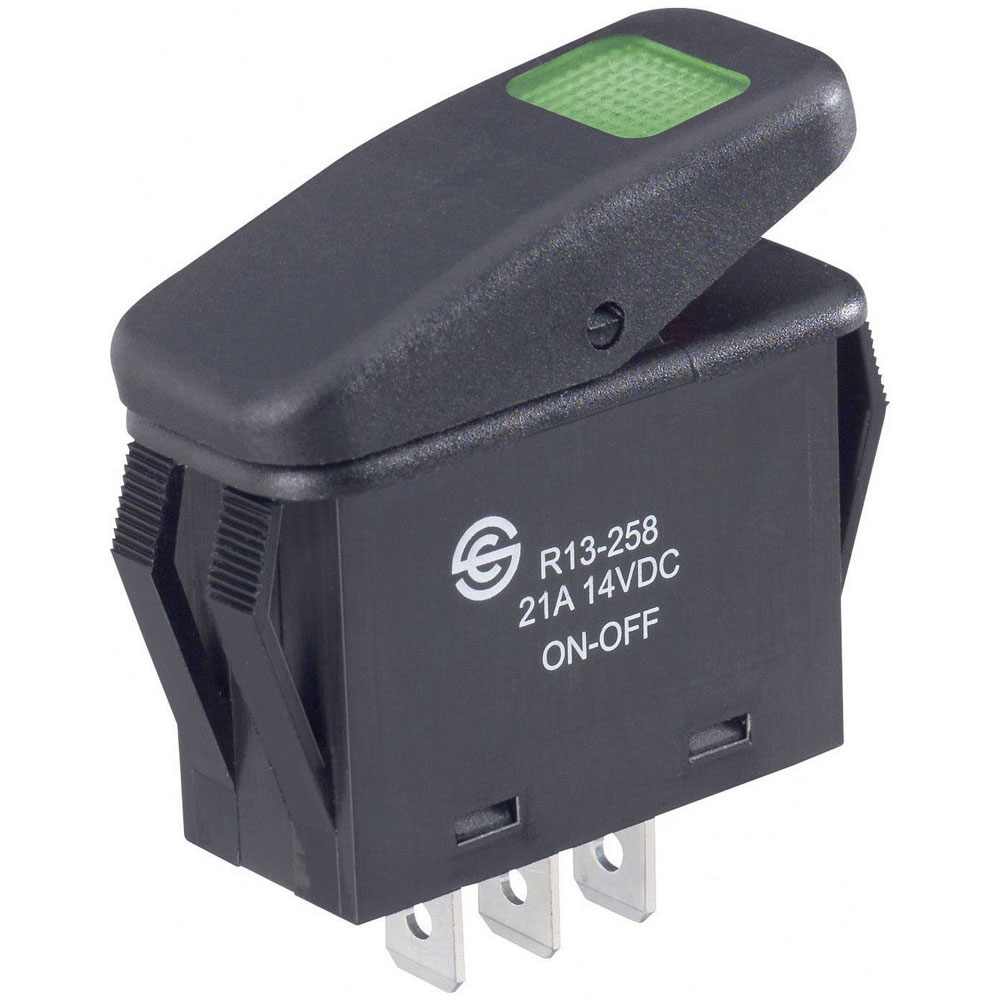

TruComponents 751594 Rocker switch,Off/On,SPST,Illuminated,Quick Connect,IP66

TruComponents
Order Code:

75-1594

Brand: TruComponents MPN: 751594 EAN-13: 4064161299914
Qty Unit Price (Ex VAT)
1+ £4.27
5+ £3.97
10+ £3.70
25+ £3.47
50+ £3.27
100+ £3.14
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
430 in stock, despatched in 4 working days

The TruComponents 751594 Rocker Switch is a premium, panel-mount switch designed for applications requiring reliable Off/On control with visual feedback and enhanced protection.

This single-pole, single-throw (SPST) switch features an illuminated design, providing clear status indication. Its quick-connect terminals ensure efficient and secure installation, reducing setup time and enhancing reliability.

With an IP66 rating, the TruComponents 751594 offers superior protection against dust and water ingress, making it suitable for demanding environments.

Constructed with high-quality materials, this rocker switch delivers exceptional durability and long-lasting performance, ideal for use in industrial machinery, automotive systems, and consumer electronics.


Contact Configuration 1 x Off/On
Switch Function latch
Current Rating (Amps) 21A
Illumination Type Spot lighting
Bulb Type LED (monochrome)
Contact Resistance 50mΩ
Dielectric Strength 1500 V/AC 1 minute
Front panel cut-out 36.8 x 15.2 mm
Front panel thickness 5mm
Illumination Colour(s) Green
Insulation Resistance 100 MΩ/500V DC
IP Rating IP66
Material Polyamide
Max. temperature +80°C
Min. temperature -20°C
Print motif None
Termination Style Type C CEE 7/16 plug 6.3 mm
Type Rocker Switch
Voltage Rating 14V DC
