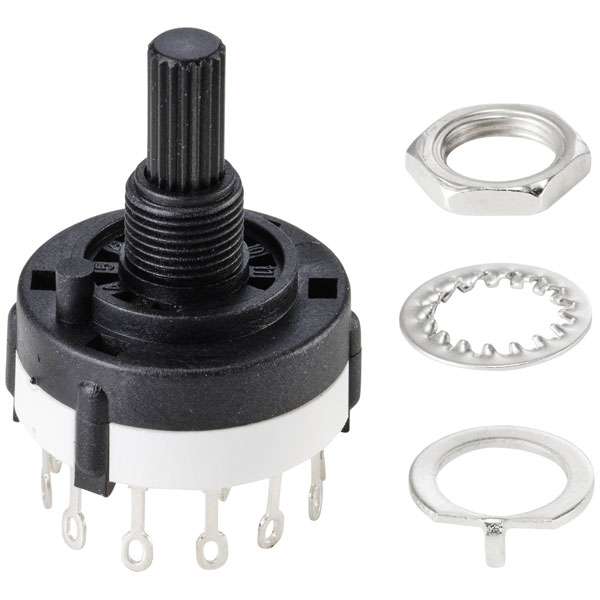

TruComponents 783103 Rotary Switch, Panel, 12x30°, Non-illum, Solder

The TruComponents TC-9415596 rotary switch, SR26A4-2X6-18F20, is a robust panel-mounted switch designed for seamless integration into various electronic devices. Its non-illuminated design features a 12-position, 30-degree configuration, capable of handling up to 250 V and 150 mA. Ideal for precision control applications, this black switch with solder connections is perfect for use in telecommunications, instrumentation, and industrial control systems.

Type	Rotary Switch
Number of Positions	12
Index Stops	12
Number of Decks	1
Current Rating (Amps)	150mA
Actuator Type	Rotary Shaft
(Ø)	26mm
Angle of Throw	12 x 30 °
Axle Ø	6mm
Casing/button Colour	Black-white
Connection	Socket
Contact Material	Steel nickel plated
Contact Resistance	≤ 0.05Ω (initial)
Dim	(Ø x L) 26 mm x 20 mm
Electrical lifespan	10000 cycles
Functions	Contact
Length	20mm
Lighting Type	None
Maximum Temperature	70°C
Min. temperature	-21°C
Misc Attribute	SR26A4-2X6-18F20
Plastic free packaging	Plastic-free packaging
Switch position	1 x Off/On
Switching Voltage	250V
Width	26mm
