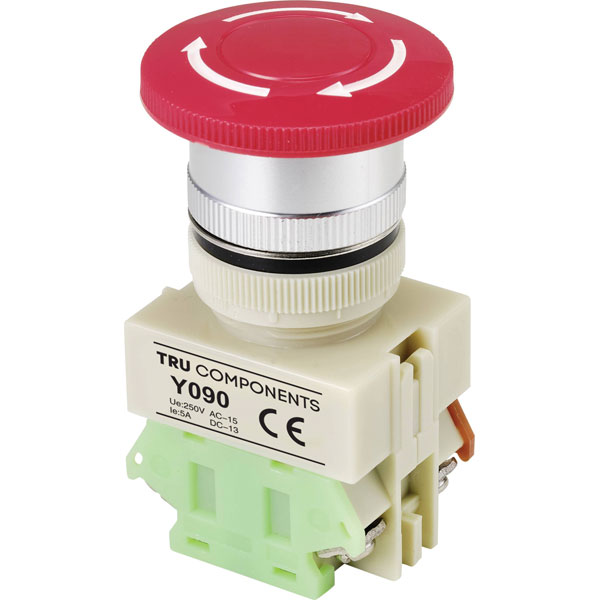

TruComponents 783095 Kill Switch, Panel, SPST, Non-illum, Screw, IP40

The TruComponents TC-9219028, 783095 kill switch is a reliable emergency power-off solution designed for use in various industrial and commercial applications. This non-illuminated, single-pole single-throw (SPST) panel mount switch operates with a Push to activate and Twist to release action, and features a durable IP40-rated housing with a secure screw connection. Ideal for emergency power cut scenarios, this switch offers a 5 A breaking capacity, providing a dependable and efficient method to manage power control in safety-critical environments.

Type	Kill Switch
Size/ Dimensions	(Ø) 40 mm
IP Rating	IP40
(Ø)	40mm
Contact Type	1 breaker
Functions	momentary
Lighting type	None
Max. temperature	+55°C
Min. temperature	-25°C
Misc Attribute 1	1 x on/off
Misc Attribute 2	Y090
Plastic free packaging	Plastic-free packaging
Print motif	EMERGENCY STOP
Recess diameter	22mm
Switching current (max.)	5A
Unlocking mechanism	Turn
