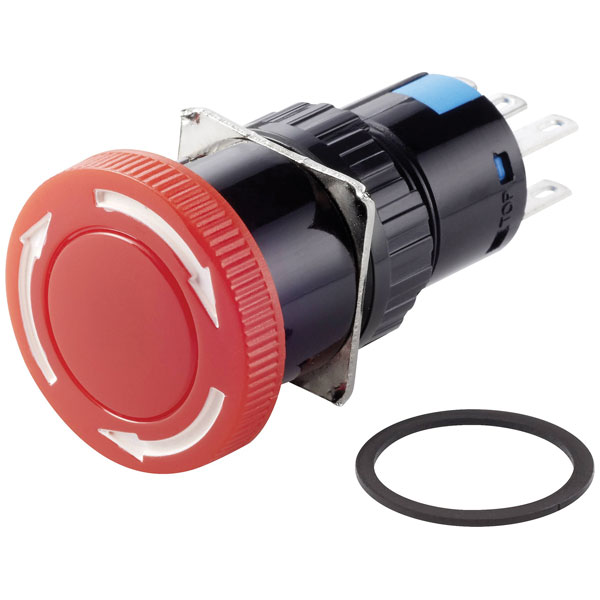

TruComponents 783090 Kill Switch, Panel, 2P, Non-Illuminated, IP40 Rated.

TruComponents TC-LAS1-AY-22TS is a non-illuminated kill switch designed for emergency power-off applications, featuring a 2-pole configuration in a red panel-mounted design. Rated at 250 V AC and 3 A, this IP40-rated switch provides a reliable solution for critical safety measures by ensuring quick and efficient power cuts. Ideal for industrial and commercial settings, this emergency cut-off switch enhances operational safety by allowing swift disconnection in urgent scenarios.

Type	Kill Switch
IP Rating	IP40
Button Ø	23.6mm
Colour	Red
Connection	Solder tag
Contact Material	Silver alloy
Durability	200000 cycles
Front panel thickness	0.5 - 6mm
Functions	latch
Maximum Temperature	+55°C
Min. temperature	-25°C
Misc Attribute	TC-LAS1-AY-22TS
Print motif	Arrow symbol
Recess Diameter	16mm
Switch Rating	250V AC
Switching current (max.)	3A
Unlocking mechanism	Turn
