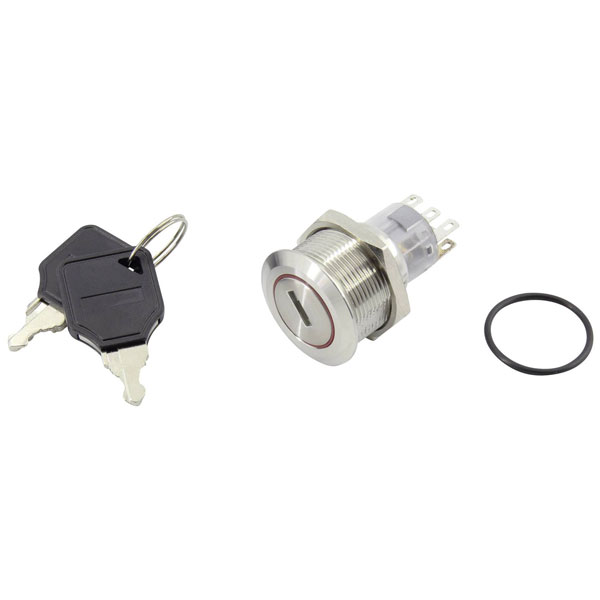

TruComponents 783062 Key Switch, Panel Mount, 2x Off/On/On, IP40

The TruComponents TC-GQ22-A-22Y/31/S203, 1602520 key switch is a high-quality panel mount switch designed for reliable control in various applications. With a double Off/On/On configuration and an IP40 rating, it operates at 250 V and 5 A, featuring a robust construction and 2 x 45° switching angle. This versatile component is suited for use in secure access control systems, industrial machinery, and automation applications.

Type	Key Switch
Contact Configuration	DP3T
Number of Positions	3
Switch Function	Off/On/On
Current Rating	5A
Key removable Positions	Off/On/On
Casing/button Colour	Stainless steel
Connection	Solder tag
Functions	latch
IP Rating	IP40
Key removal position	Off/On/On
Material	Stainless steel
Maximum Temperature	+55°C
Min. temperature	-25°C
Misc Attribute	TC-GQ22-A-22Y/31/S203
Recess Diameter	19mm
Shape	Round
Switch postions	3
Switching angle	2 x 45 °
Switching Voltage	250V
