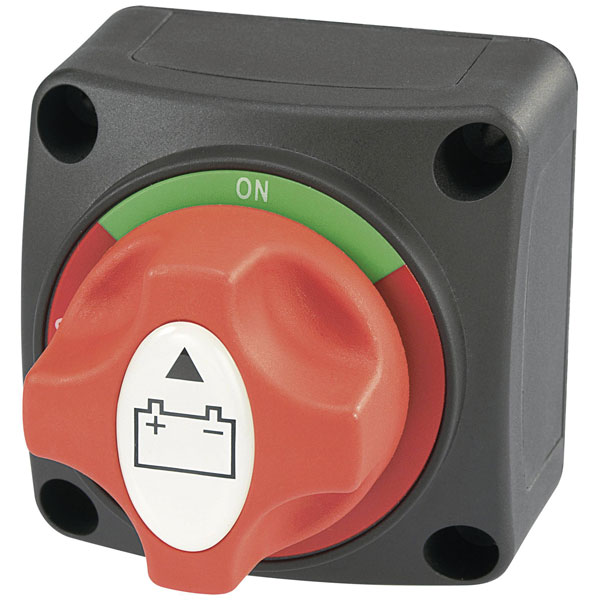

TruComponents 783057 Battery Switch, Panel, Off/On, Non-illum, IP54 Rating

The TruComponents TC-A23-2 is a robust battery switch designed for automotive applications, offering a reliable off/on latch configuration. This non-illuminated, black and red switch is rated for 12 V to 50 V DC and can handle up to 200 A, making it suitable for high-current applications. With an IP54 rating, it provides dust and splash protection, making it ideal for use in challenging environments.

Type	Battery Switch
Colour	Red, Black
Connection	Screw terminal
Dimensions	(L x W x H) 69 x 69 x 74 mm
Functions	latch
Height	74mm
IP Rating	IP54
Length	69mm
Lighting Type	None
Maximum Temperature	+80°C
Min. temperature	-20°C
Misc Attribute	TC-A23-2
Number of pins	1
Number of Poles	1
Print motif	Battery symbol
Switch position	1 x Off/On
Switching current (max.)	200A
Width	69mm
