TruComponents 782723 Pushbutton ,Panel Mount,Off/On,NO/NC,Solder,IP65

TruComponents
Order Code:

78-2723

Brand: TruComponents MPN: 782723 EAN-13: 4064161189222
Qty Unit Price (Ex VAT)
1+ £25.89
5+ £25.28
10+ £24.69
25+ £24.13
50+ £23.59
100+ £23.08
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
39 in stock, despatched in 4 working days

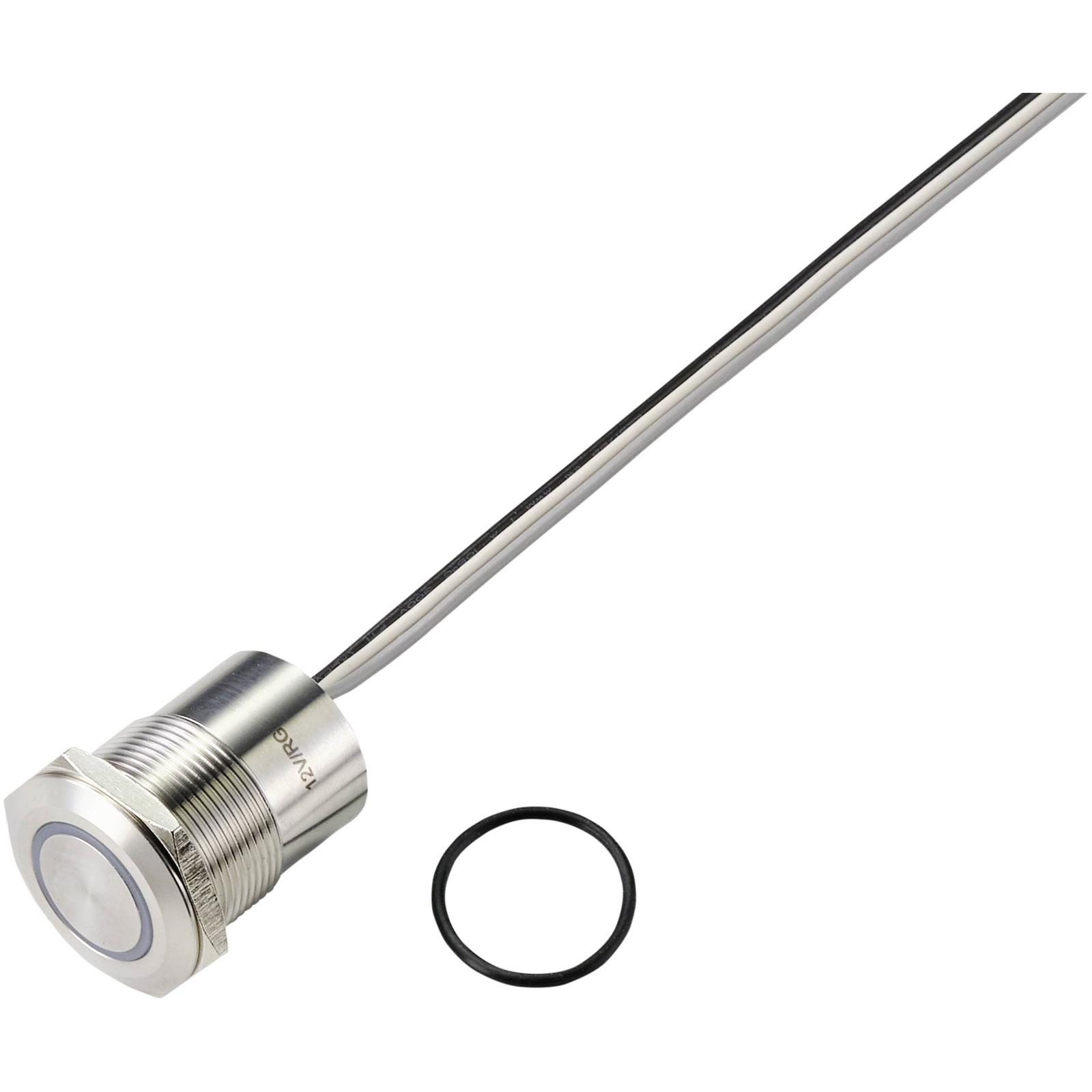

Manufactured by TruComponents, the TC-9554808 is a panel mount pushbutton switch that offers an off/on latch function with NO/NC contact configuration. This touch switch, suitable for 24 V and 0.5 A, features a green and red illumination and holds an IP65 protection rating. Ideal for robust applications, it is commonly used in industrial equipment requiring reliable operational control and clear status indication.
Type Pushbutton
Contact Configuration 1 x Off/On
Switch Function latch
Current Rating 0.5A
(Ø) 25mm
Actuating Force 0N
Board thickness (max.) 8mm
Bulb Type LED (monochrome)
Button diameter 13.5mm
Casing/button colour Stainless steel
Connection Open end cable
Contact Resistance 20mΩ
Dim (Ø) 25 mm
Electrical lifespan 50,000,000 cycles
Front panel cut-out 22mm
Insulation Resistance 600VDC 10MΩ
IP Rating IP65
Lighting type Circular lighting 2.4 mm
Material Stainless steel
Max. temperature 55°C
Min. temperature -25°C
Misc Attribute 1 PNP output, LED operating voltage 12 V
Misc Attribute 2 TC-9554808
Recess diameter 22mm
Switch/button features capacitive
Switching current (inductive) 0.5A
Switching Voltage 24V
