TruComponents 782718 Pushbutton ,Panel Mount,Off/On,SPST,Solder,IP65

TruComponents
Order Code:

78-2718

Brand: TruComponents MPN: 782718 EAN-13: 4064161171456
Qty Unit Price (Ex VAT)
1+ £15.72
5+ £15.34
10+ £14.98
25+ £14.64
50+ £14.32
100+ £14.01
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
28 in stock, despatched in 4 working days

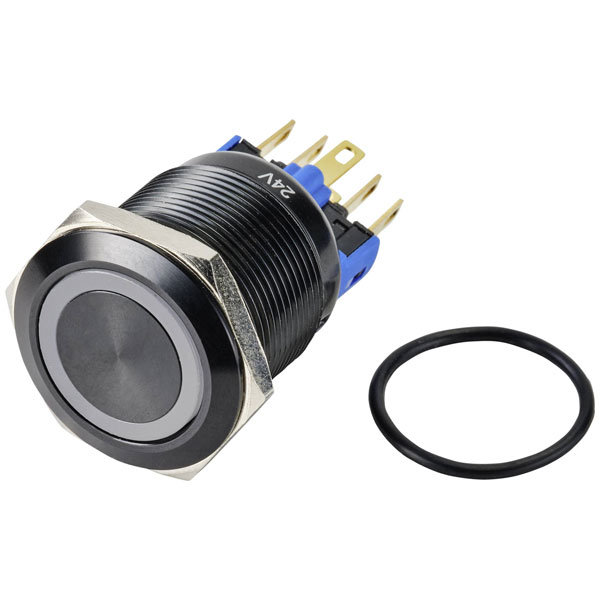

TruComponents manufactures the TC-9428220 pushbutton, designed for panel mounting with an Off/On latch configuration and is rated at 250 V AC and 3 A. This single-pole, single-throw (SPST) switch features a blue button and is IP65 rated for water and dust resistance, making it suitable for industrial or outdoor applications. Typical uses include machinery controls, instrumentation panels, and other equipment requiring reliable manual input.
Type Pushbutton
Contact Configuration 1 x Off/On
Switch Function 1 change-over
Current Rating 3A
Board thickness (max.) 8mm
Bulb Type LED (monochrome)
Button diameter 10.4mm
Colour Blue
Contact Material Silver alloy
Durability 1000000
Electrical lifespan 50000
IP Rating IP65
Lighting type Circular lighting
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute GQ22-11ZE/B/12V/A
Recess depth 40.5mm
Recess diameter 22mm
Switching Voltage 250V AC
