TruComponents 782702 Pushbutton ,Panel Mount,On/On,Scr/term,IP40

TruComponents
Order Code:

78-2702

Brand: TruComponents MPN: 782702 EAN-13: 4064161171159
Qty Unit Price (Ex VAT)
1+ £5.34
5+ £5.22
10+ £5.09
25+ £4.98
50+ £4.87
100+ £4.76
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
25 in stock, despatched in 4 working days

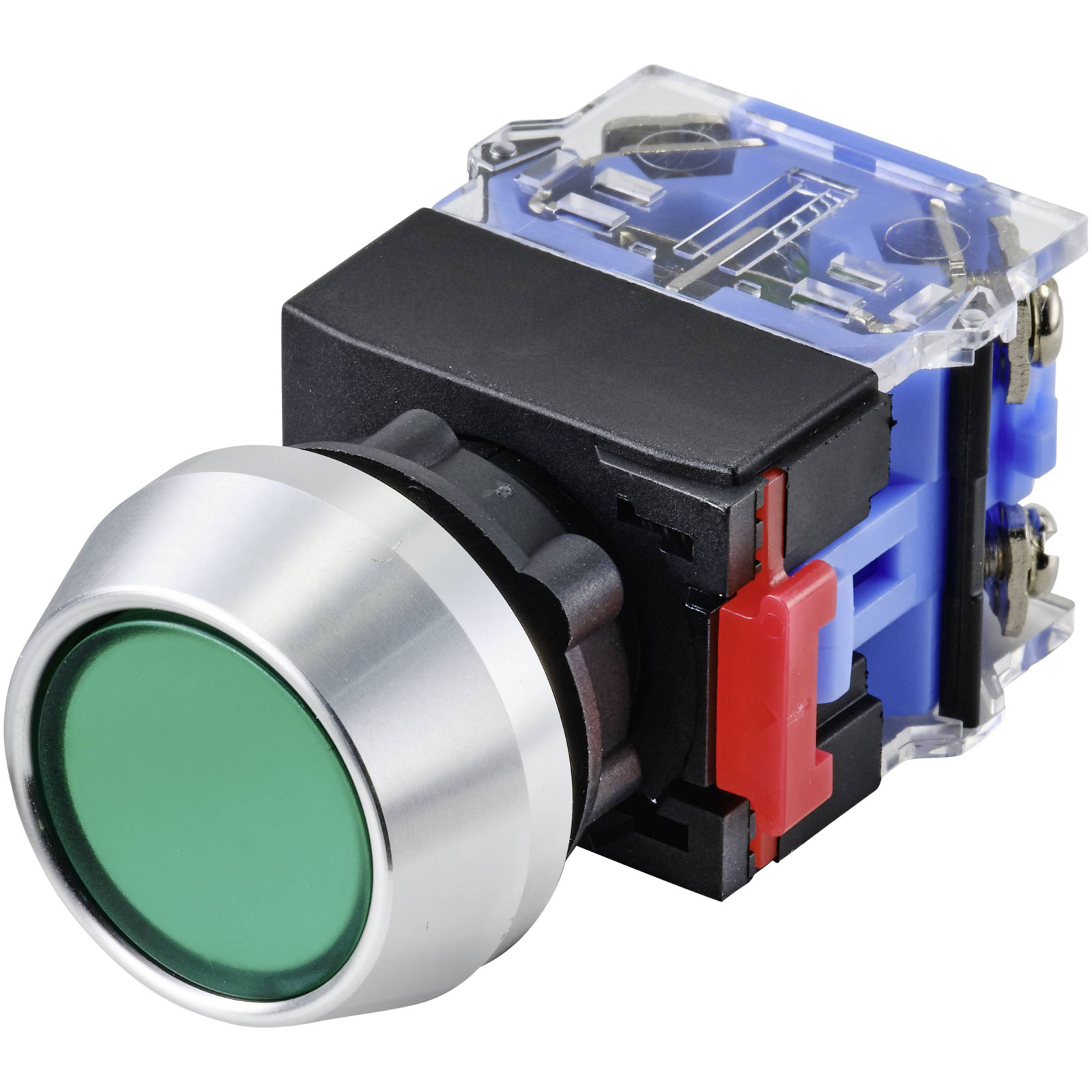

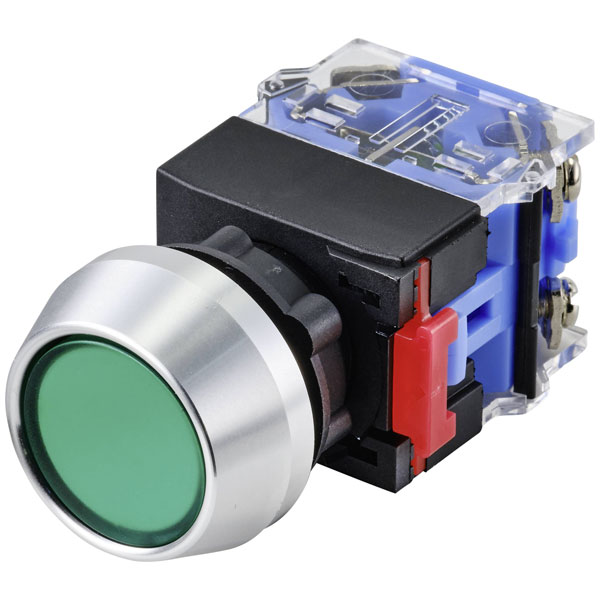

TruComponents offers the TC-9428100 pushbutton switch, suitable for panel mounting with an On/On switch configuration. Rated for 250 V and 5 A, it features a latching action but is not illuminated, with an IP40 protection rating. This pushbutton switch is ideal for general-purpose electrical applications where panel-mounted switching is required.
Type Pushbutton
Board thickness (max.) 5mm
Button diameter 24mm
Casing/button colour Green
Contact Material Silver alloy
Durability 1000000
Electrical lifespan 50000
Functions latch
IP Rating IP40
Lighting type None
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute LAS0-L-11Z/G
Recess depth 55mm
Recess diameter 22mm
Switch position 1 x Off/On
Switching current (max.) 5A
Switching Voltage 250V
