TruComponents 782701 Pushbutton ,Panel Mount,On/On,Scr/term,IP40

TruComponents
Order Code:

78-2701

Brand: TruComponents MPN: 782701 EAN-13: 4064161171142
Qty Unit Price (Ex VAT)
1+ £5.54
5+ £5.40
10+ £5.28
25+ £5.16
50+ £5.04
100+ £4.93
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
35 in stock, despatched in 4 working days

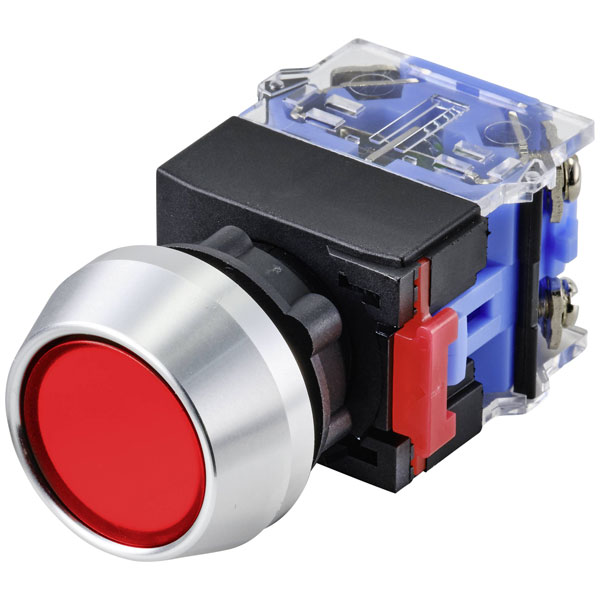

TruComponents manufactures the TC-9428096 LAS0-L-11Z/R pushbutton switch, designed for panel mounting with an On/On switch action and IP40 protection. This switch supports a voltage rating of 250 V and a current rating of 5 A. It is ideal for applications requiring reliable control inputs in equipment or control panels.
Type Pushbutton
Current Rating 5A
Voltage Rating 250V
Switch Function latch
Board thickness (max.) 5mm
Button diameter 24mm
Casing/button colour Red
Contact Material Silver alloy
Durability 1000000
Electrical lifespan 50000
IP Rating IP40
Lighting type None
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute LAS0-L-11Z/R
Recess depth 55mm
Recess diameter 22mm
Switch position 1 x Off/On
