TruComponents 782700 Pushbutton ,Panel Mount,Off/(On),Scr/term,IP40

TruComponents
Order Code:

78-2700

Brand: TruComponents MPN: 782700 EAN-13: 4064161171135
Qty Unit Price (Ex VAT)
1+ £4.40
5+ £4.29
10+ £4.19
25+ £4.10
50+ £4.00
100+ £3.92
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
73 in stock, despatched in 4 working days

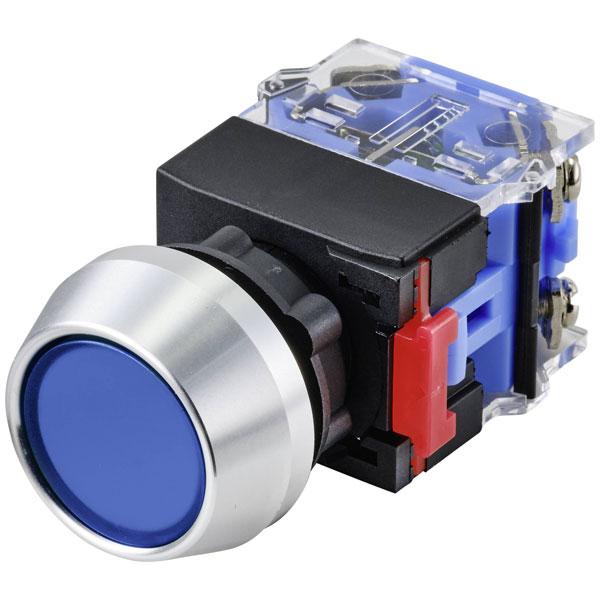

TruComponents manufactures the TC-9428092 LAS0-L-11/B pushbutton, designed for panel mounting with an Off/(On) momentary switch action. It is rated for 250 V and 5 A, featuring screw terminals with an IP40 ingress protection rating. This pushbutton is suitable for use in various electrical control applications where momentary operation is required.
Type Pushbutton
Current Rating 5A
Voltage Rating 250V
Switch Function momentary
Board thickness (max.) 5mm
Button diameter 24mm
Casing/button colour Blue
Contact Material Silver alloy
Durability 1000000
Electrical lifespan 50000
IP Rating IP40
Lighting type None
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute LAS0-L-11/B
Recess depth 55mm
Recess diameter 22mm
Switch position 1 x Off/(On)
