TruComponents 782696 Pushbutton ,Panel Mount,Off/On,NO/NC,Solder,IP40

TruComponents
Order Code:

78-2696

Brand: TruComponents MPN: 782696 EAN-13: 4064161171098
Qty Unit Price (Ex VAT)
1+ £4.20
5+ £4.10
10+ £4.01
25+ £3.92
50+ £3.83
100+ £3.75
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
222 in stock, despatched in 4 working days

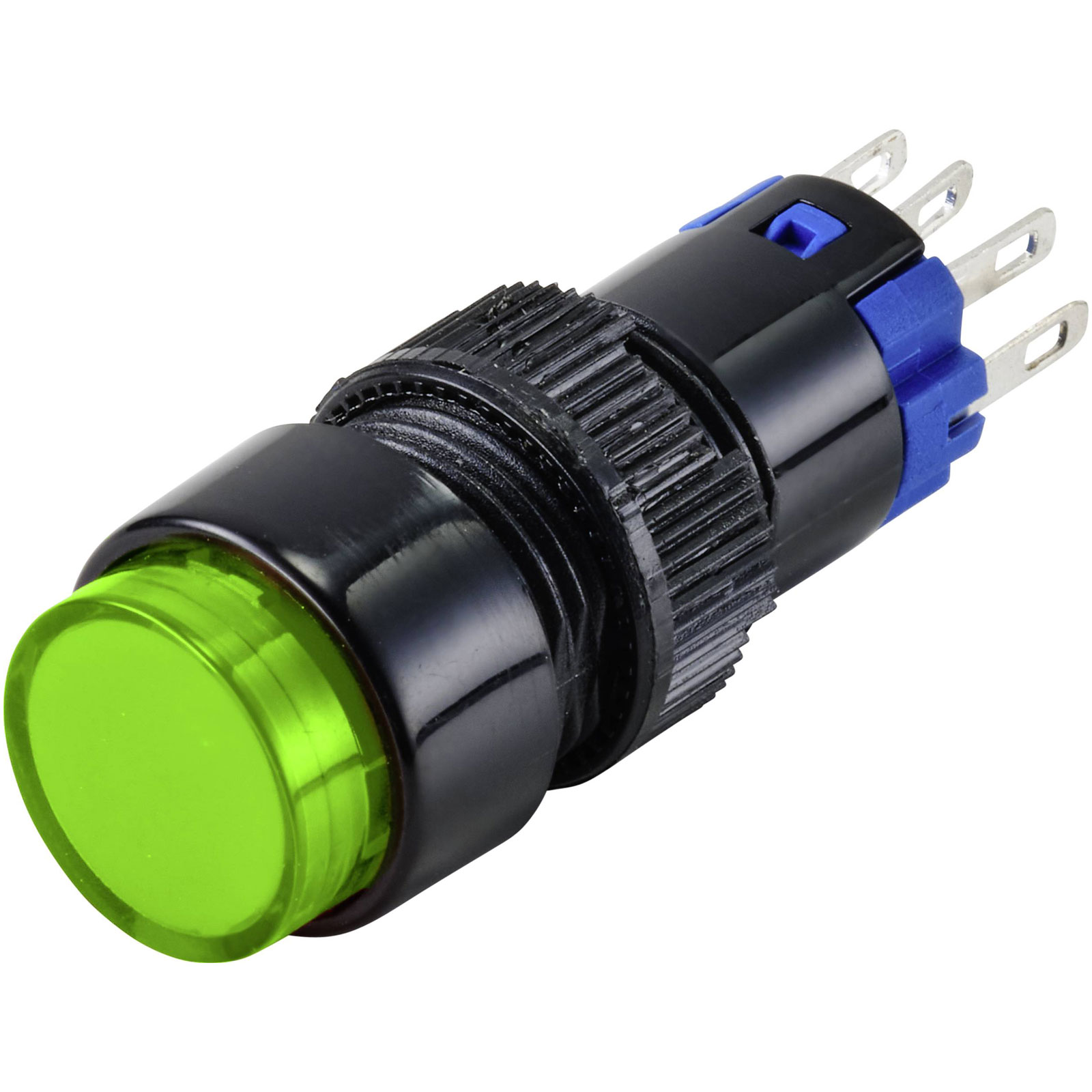

The TruComponents pushbutton switch is a panel mount, Off/On, NO/NC type with solder terminals, featuring a green illuminated button. It has a voltage rating of 250 V, a current rating of 3 A, and offers latching switch action with IP40 protection. This switch is suitable for industrial control panels and electronic equipment requiring reliable and visible activation.
Type Pushbutton
Board thickness (max.) 8mm
Bulb Type LED (monochrome)
Button diameter 12mm
Colour Green
Contact Material Silver alloy
Durability 200000
Electrical lifespan 50000
Functions latch
IP Rating IP40
Lighting type Area illumination
Max. temperature +55°C
Min. temperature -25°C
Misc Attribute LAS2Y-11Z/G/12V
Recess depth 28mm
Recess diameter 12mm
Switch position 1 x Off/On
Switching current (max.) 3A
Switching Voltage 250V
