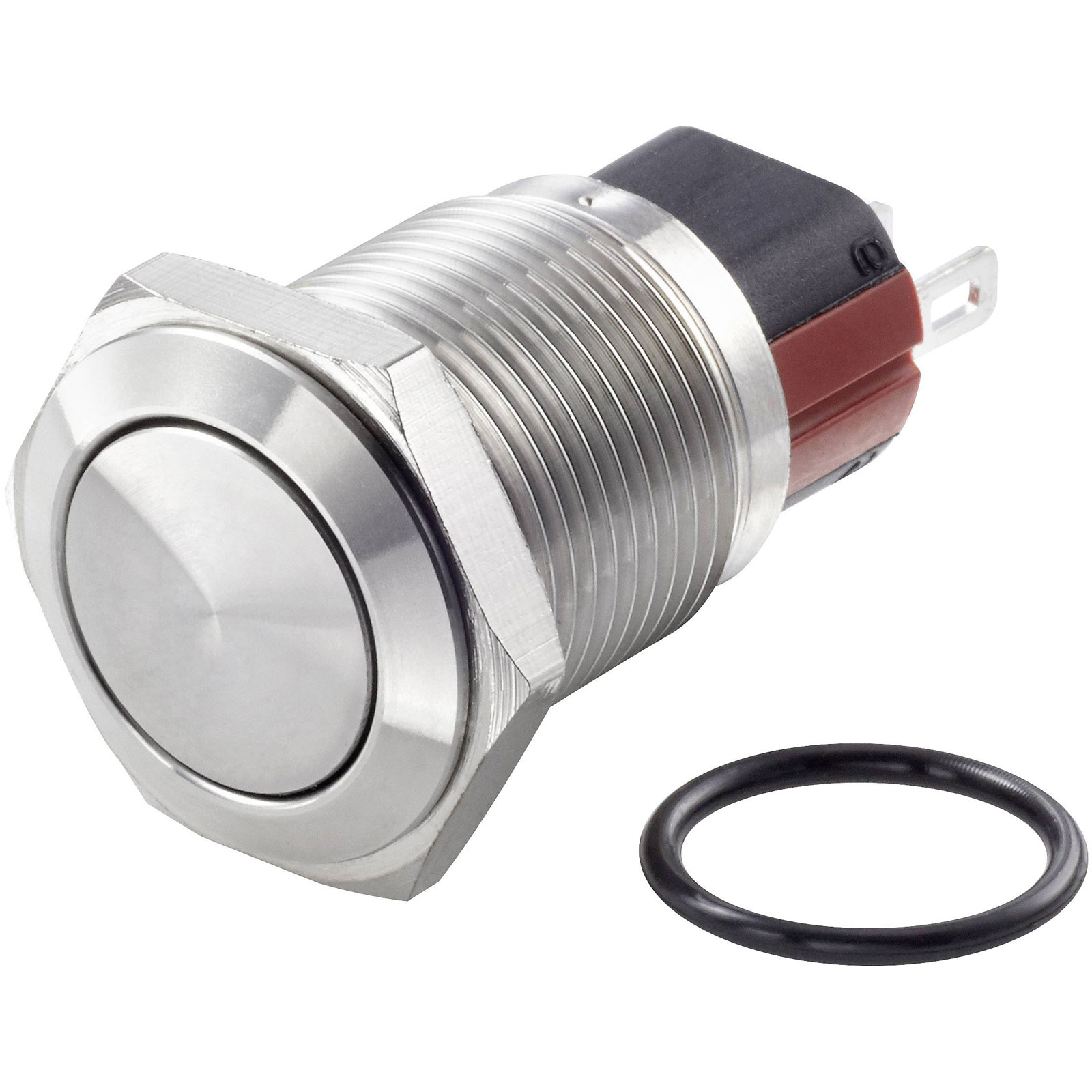

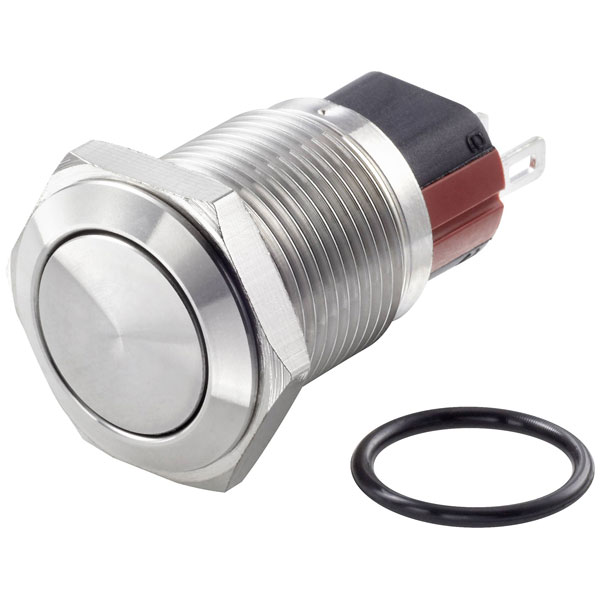

TruComponents 782657 Pushbutton ,Panel Mount,Off/On,NO/NC,Solder,IP65

TruComponents offers the TC-7494716 tamper-proof pushbutton, designed for panel mounting with an Off/On switch action. It features a NO/NC configuration, IP65 rating for protection against dust and water, and is suitable for solder connections. This robust switch is ideal for use in industrial control panels and machinery applications.

Type	Pushbutton
Contact Configuration	SPDT NO/NC
Switch Function	latch
Current Rating	3A
Mounting	Panel
Illumination	Non-Illuminated
Panel Cutout Dimensions	16
Button Ø	23.6mm
Connection	Solder tag
Contact Material	Silver alloy
Durability	200000 cycles
Factory colour	Red
Front panel thickness	0.5 - 6mm
IP Rating	IP40
Max. temperature	+55°C
Min. temperature	-25°C
Misc Attribute	TC-LAS1-AY-22TS
Print motif	Arrow symbol
Recess Diameter	16mm
Switching Voltage	250V AC
Unlocking mechanism	Turn
