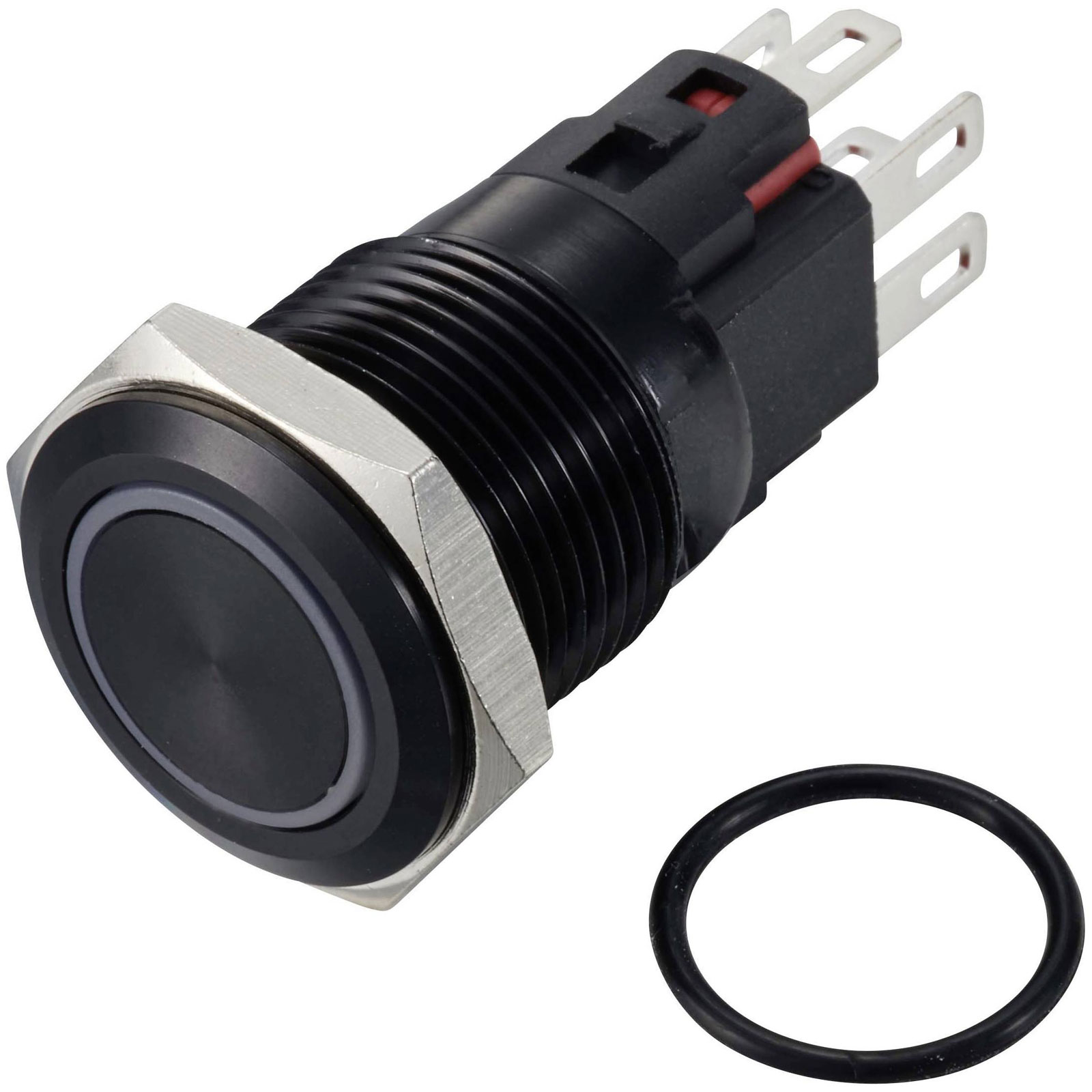

TruComponents 782591 Pushbutton ,Panel Mount,Off/On,SPDT,Solder,IP65

The TruComponents pushbutton, model TC-12647436, is a panel mount SPDT switch with a 250 V AC and 3 A rating. It features an IP65-rated anodized aluminium housing, providing robust protection against dust and water. This momentary switch is ideal for applications requiring reliable control with RGB illumination, suitable for both industrial and commercial environments.

Type	Pushbutton
Contact Configuration	SPDT
Switch Function	Momentary
Current Rating	10A
Mounting	Panel
Illumination	RGB
Panel Cutout Dimensions	12
Connection	Screws
Dim	(L x W x H) 70.5 x 30.5 x 30 mm
Height	30mm
IP Rating	IP65
Length	70.5mm
Maximum Temperature	+70°C
Min. temperature	-10°C
Misc Attribute	XZ-9/110
Operation type	Pivot lever
Switching Voltage	250V AC
Width	30.5mm
