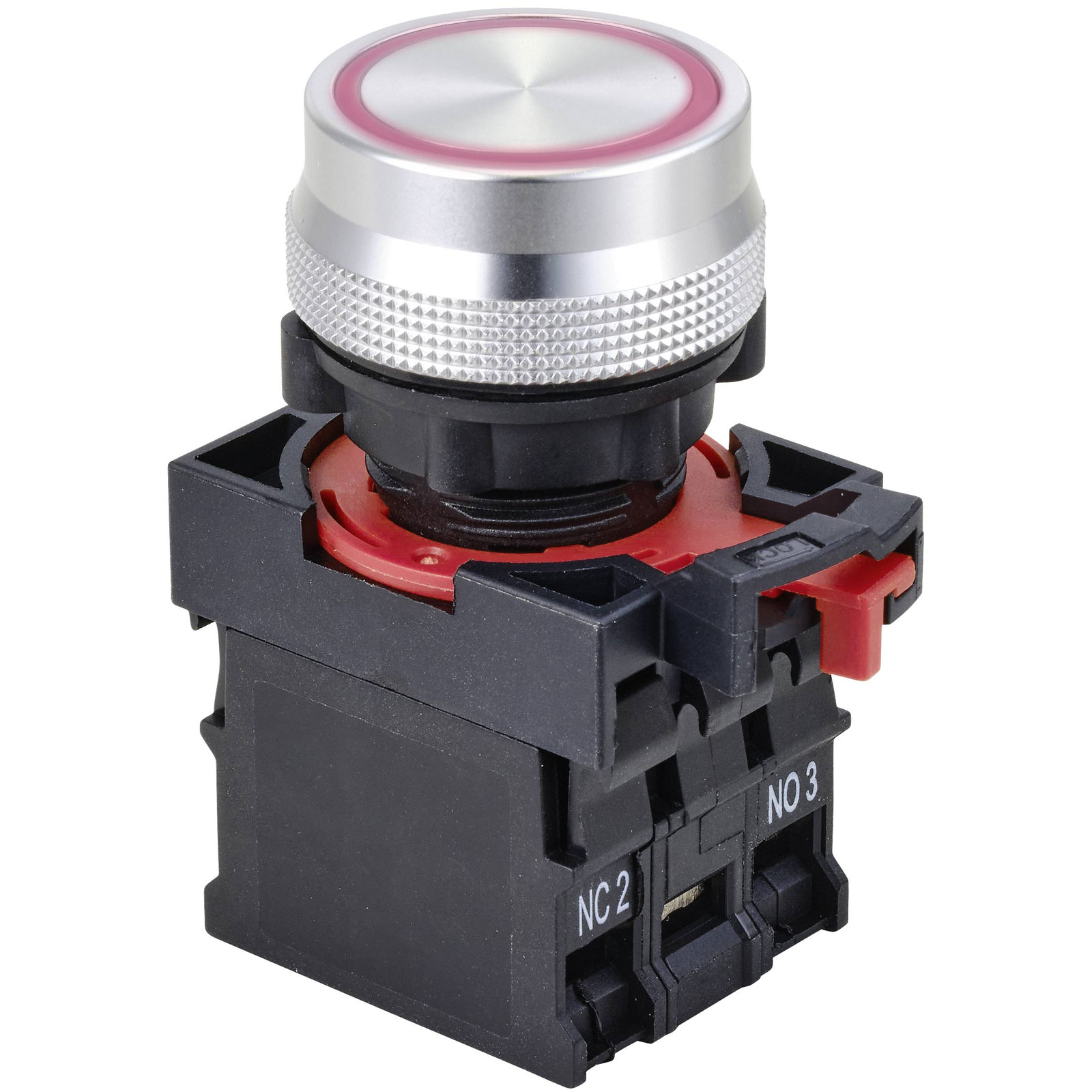

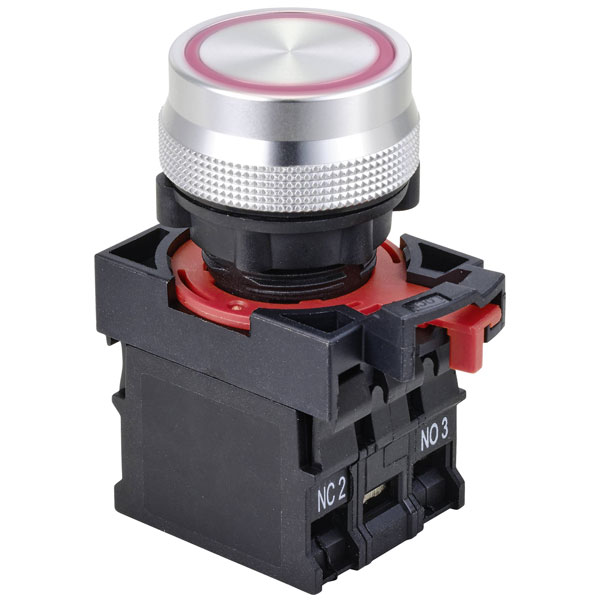

TruComponents 782573 Pushbutton ,Panel Mount,On/On,NO/NC,Scr/term,IP40

The TruComponents pushbutton switch is a panel mount, On/On switch with a NO/NC configuration. It operates at 250 V and 5 A, featuring a red latch mechanism and IP40 protection. This switch is suitable for general electrical applications where durable and reliable manual control is needed.

Type	Pushbutton
Switch Function	On/On
Voltage Rating	250V
Current Rating	N/A
Colour	Red
CS	2.54mm
Dim	(W x H) 10.6 mm x 9.7 mm
Height	9.7mm
IP Rating	IP40
Maximum Temperature	+55°C
Min. temperature	-25°C
Misc Attribute 1	Piano-type
Misc Attribute 2	DP-01
Number of Poles	1
Switch position	Off/On
Width	10.6mm
