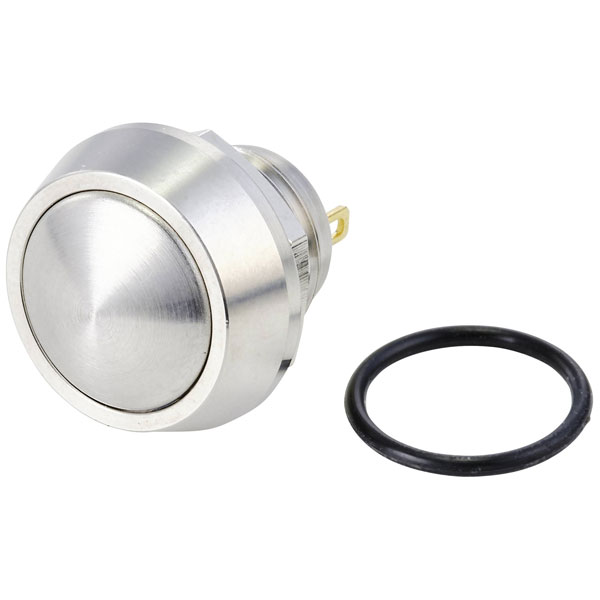

TruComponents 782152 Pushbutton ,Panel Mount,Off/(On),SPST,Solder,IP67

The TruComponents pushbutton, model TC-10090996 GQ12B-10/J/S, is a panel-mount switch ideal for brief on-demand actions, offering an Off/(On) momentary switch configuration. It is rated at 48 V DC and 2 A, suitable for applications requiring robust performance in environments demanding high ingress protection, certified at IP67. Typical applications include control panels, commercial equipment, and outdoor devices where reliable seal and resilience are critical.

Type	Pushbutton
Contact Configuration	1 x Off/(On)
Switch Function	1 maker
Current Rating	2A
Mounting	Panel
Panel Cutout Dimensions	13
Board thickness (max.)	4mm
Casing/button Colour	Stainless steel
Connection	Soldering
Contact Material	Silver alloy
Contact Resistance	≤ 50 mΩ
Dielectric Strength	1500 VAC
Electrical lifespan	200000
Insulation Resistance	≥ 100 MΩ
IP Rating	IP65
Material	Stainless steel
Maximum Temperature	+55°C
Min. temperature	-25°C
Misc Attribute	GQ12B-10/J/S
Plastic free packaging	Plastic-free packaging
Recess depth	12.5mm
Recess Diameter	13mm
Switching Voltage	48V DC
