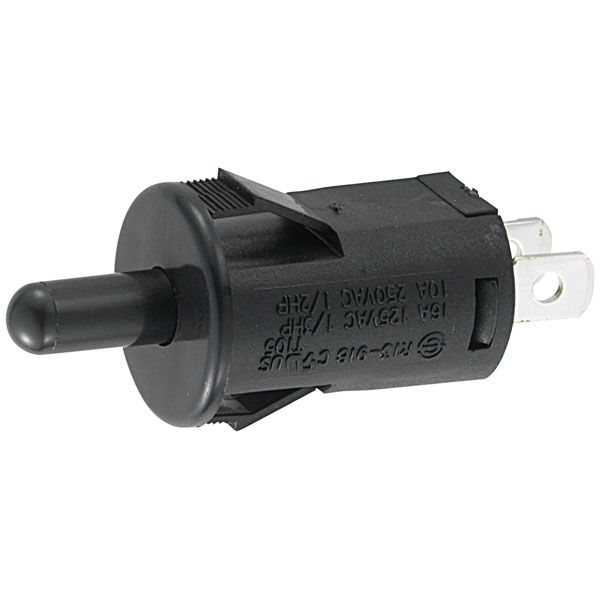

TruComponents 782119 Pushbutton ,Panel Mount,Off/(On),SPST-NO,PushOn

The TruComponents 78-2119 pushbutton is a black panel mount switch with a single pole, single throw (SPST-NO) configuration for momentary action. Rated for 250V AC and 10A, it is suitable for switching tasks, in which an open door is to be registered or as "Registration" for an Alarm system. Commonly used in control panels and equipment interfaces. Its rugged construction and reliable operation make it suitable for industrial and commercial applications.

Type	Pushbutton
Contact Configuration	1 x Off/(On)
Switch Function	1 maker
Current Rating	10A
Mounting	Panel
Illumination	Non-Illuminated
Board thickness (max.)	3mm
Casing/button Colour	Black
Connection	Type C CEE 7/16 plug 4.8mm
Contact Resistance	50mΩ
Dielectric Strength	(1 min) 1500V AC
Insulation Resistance	(500 V/DC) ≥ 100MΩ
Lighting Type	None
Misc Attribute	TC-R13-918
Recess Diameter	16.70mm
Switch/button features	Planar
Switching Voltage	250V AC
