TruComponents 781997 Pushbutton ,Panel Mount,Off/On,SPST,Solder

TruComponents
Order Code:

78-1997

Brand: TruComponents MPN: 781997 EAN-13: 4064161300139

  • Quickly find another product in this range by Colour:

    Blue Green Red
Qty Unit Price (Ex VAT)
2+ £3.28
5+ £3.20
10+ £3.12
25+ £3.05
50+ £2.99
100+ £2.92
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,515 available to back orderBack-order availability date - 09/01/2026

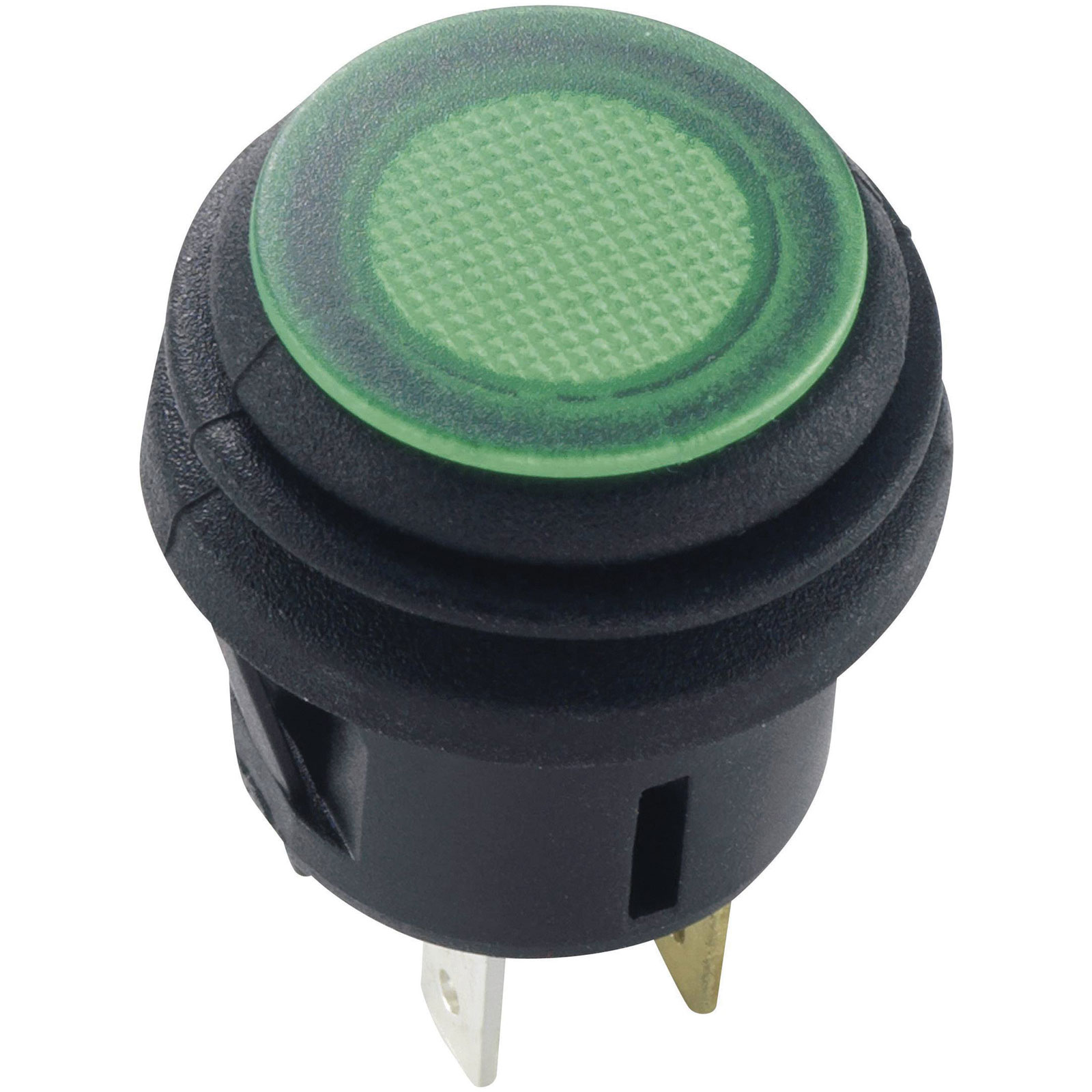

The TruComponents 78-1997 pushbutton is a green illuminated panel mount switch with a single-pole single-throw (SPST) latching configuration for on/off functionality. It operates at a voltage of 14V DC with a current rating of 20A. This pushbutton is typically used in applications requiring reliable on/off control, such as in electronic devices and equipment panels.
Type Pushbutton
Contact Configuration 1 x On/Off
Switch Function 1 breaker
Current Rating 20A
Board thickness (max.) 2.5mm
Bulb Type LED (monochrome)
Casing/button colour Black
Colour Green
Connection Type C CEE 7/16 plug 4.8 mm
Contact Resistance Max. 50mΩ
Dielectric Strength 1500V AC
Insulation Resistance 100MΩ
Lighting type Area illumination
Max. temperature +85°C
Min. temperature -25°C
Misc Attribute TC-R13-527D2B
Recess diameter 20.2mm
Switch/button features Protruding
Switching Voltage 14V DC
