TruComponents 781994 Pushbutton ,Panel Mount,Off/(On),SPST-NC,Solder

TruComponents
Standard range
Order Code:

78-1994

Brand: TruComponents MPN: 781994 EAN-13: 4064161300054
Qty Unit Price (Ex VAT)
1+ £1.36
5+ £1.33
10+ £1.30
25+ £1.27
50+ £1.24
100+ £1.21
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,431 in stock, despatched in 4 working days

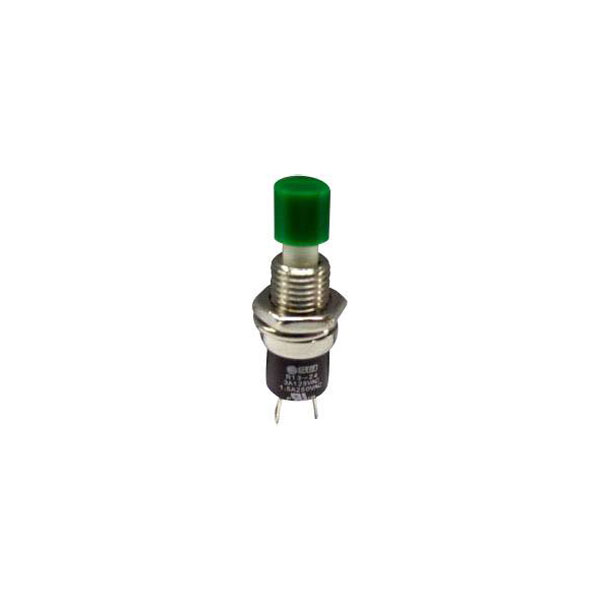

The TruComponents 78-1994 pushbutton is a green panel mount switch designed for off/(on) momentary action and features a normally closed configuration. It supports 250 V AC and a current rating of 1.5 A, providing reliable performance for electronic circuits. Typical applications include control panels and machinery where a short-duration switch engagement is required.
Type Pushbutton
Board thickness (max.) 4mm
Button diameter 6mm
Casing/button colour Green
Connection Solder tag
Contact resistance max. 50mΩ
Contact type 1 breaker
Functions momentary
Height 5.6mm
Insulation resistance min 100 MΩ (500 V/DC)
Lighting type None
Misc Attribute TC-R13-24B1-05 GN
Recess diameter 7.2mm
RoHS-compliant Yes
Switch position 1 x On/(Off)
Switch/button features Protruding
Switching current (max.) 1.5A
Switching voltage 250V AC
