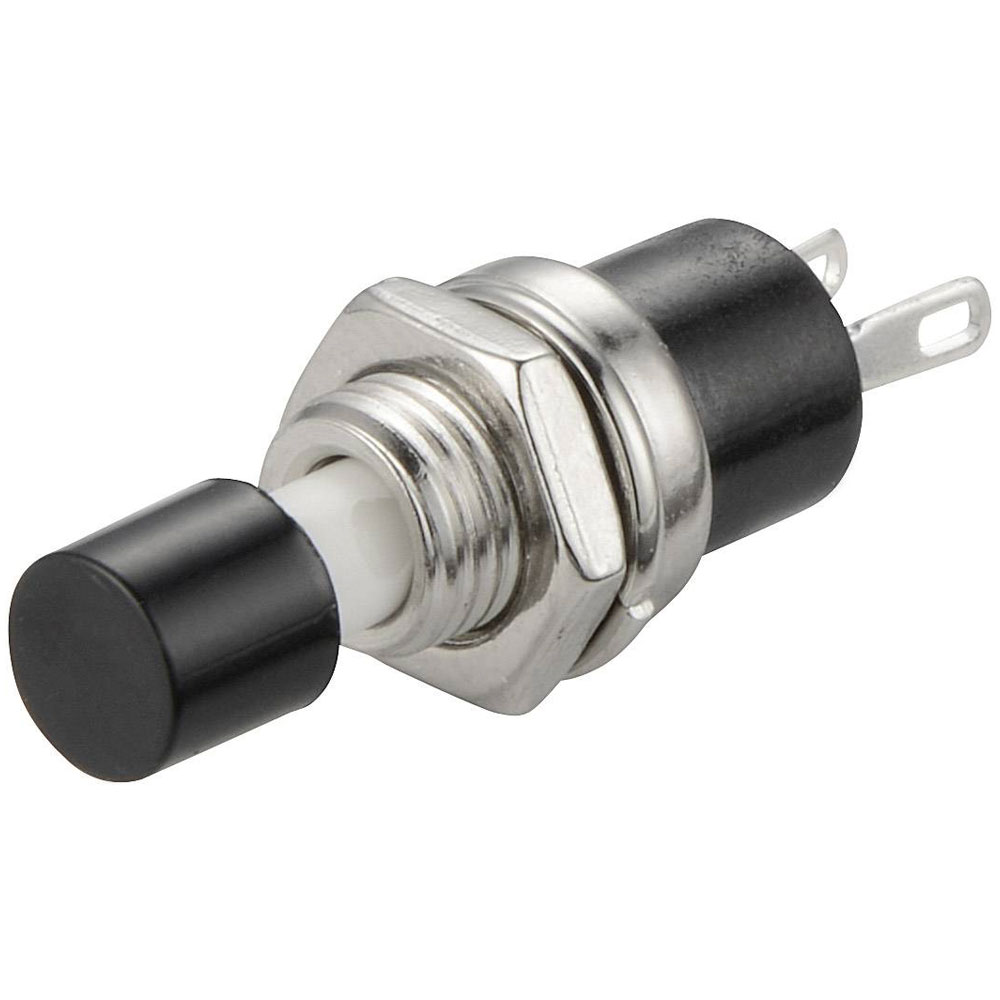

TruComponents 781991 Pushbutton ,Panel Mount,Off/(On),SPST-NO,Solder

The TruComponents 78-1991 pushbutton is a black panel mount, normally-open switch with off/(on) momentary action. It features a voltage rating of 250 V AC and a current rating of 1.5 A, making it suitable for low-power applications. Typical applications include control panels and electronic devices requiring a non-latching activation mechanism.

Type	Pushbutton
Contact Configuration	1 x Off/(On)
Switch Function	1 maker
Current Rating	1.5A
Mounting	Panel
Illumination	Non-Illuminated
Panel Cutout Dimensions	7.2
Button Diameter	6mm
Casing/button Colour	Black
Connection	Solder tag
Height	5.6mm
Insulation Resistance	min 100 MΩ (500 V/DC)
Lighting Type	None
Misc Attribute	TC-R13-24A1-05-BK
Recess Diameter	7.2mm
Switch/button features	Protruding
Switching Voltage	250V AC
