TruComponents 781986 Pushbutton ,Panel Mount,Off/(On),SPST-NO,Solder

TruComponents
Order Code:

78-1986

Brand: TruComponents MPN: 781986 EAN-13: 4064161299976
Qty Unit Price (Ex VAT)
3+ £1.38
5+ £1.35
10+ £1.32
25+ £1.29
50+ £1.26
100+ £1.23
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
978 available to back orderBack-order availability date - 09/01/2026

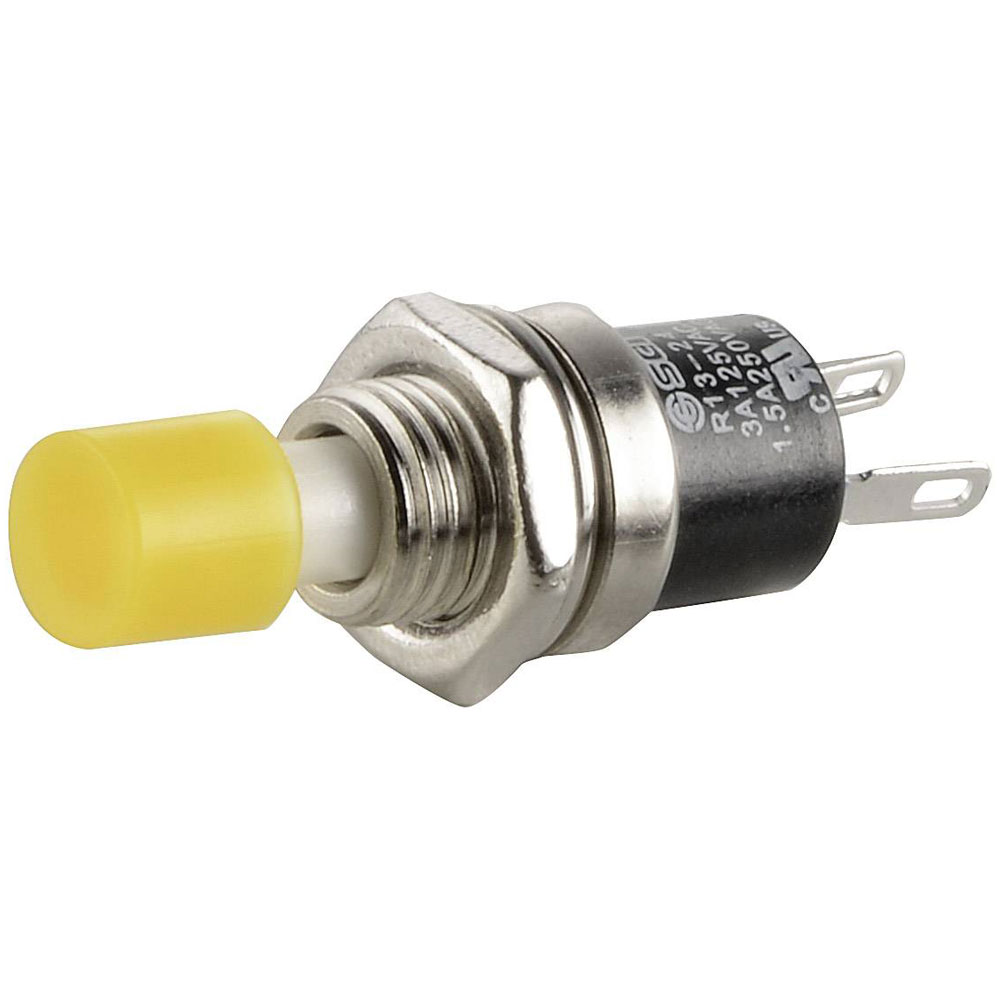

The TruComponents 78-1986 pushbutton is a miniature, yellow, momentary switch designed for panel mounting. It features a single-pole single-throw normally-open (SPST-NO) configuration with a voltage rating of 250 V AC and a current rating of 1.5 A. This pushbutton is ideal for use in control panels and other electronic applications requiring reliable user input.
Type Pushbutton
Contact Configuration 1 x Off/(On)
Switch Function 1 maker
Current Rating 1.5A
Button diameter 6mm
Casing/button colour Yellow
Connection Solder tag
Height 5.6mm
Insulation Resistance min 100 MΩ (500 V/DC)
Lighting type None
Misc Attribute TC-R13-24A1-05 YE
Recess diameter 7.2mm
Switch/button features Protruding
Switching Voltage 250V AC
