TruComponents 781962 Pushbutton ,Panel Mount,Off/(On),SPST-NO,Solder

TruComponents
Standard range
Order Code:

78-1962

Brand: TruComponents MPN: 781962 EAN-13: 4064161299440
Qty Unit Price (Ex VAT)
1+ £1.30
5+ £1.27
10+ £1.24
25+ £1.21
50+ £1.18
100+ £1.16
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,024 in stock, despatched in 4 working days

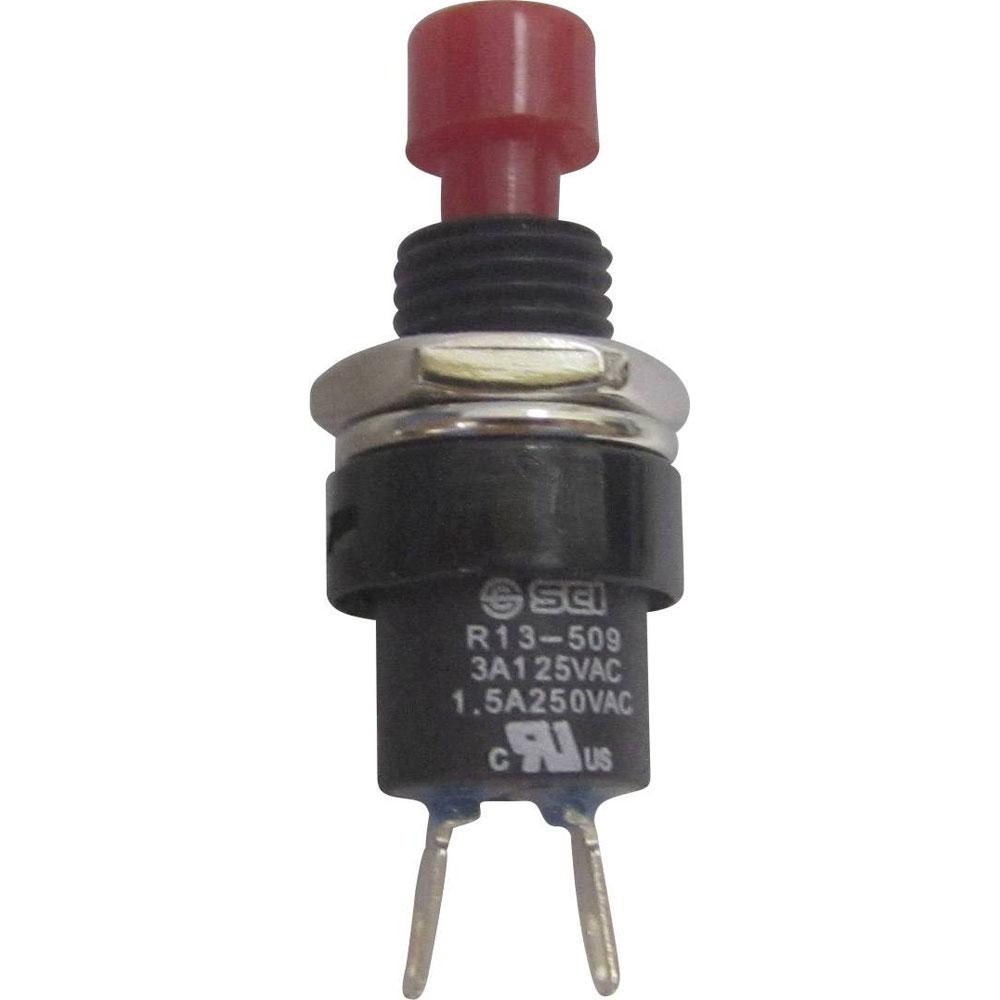

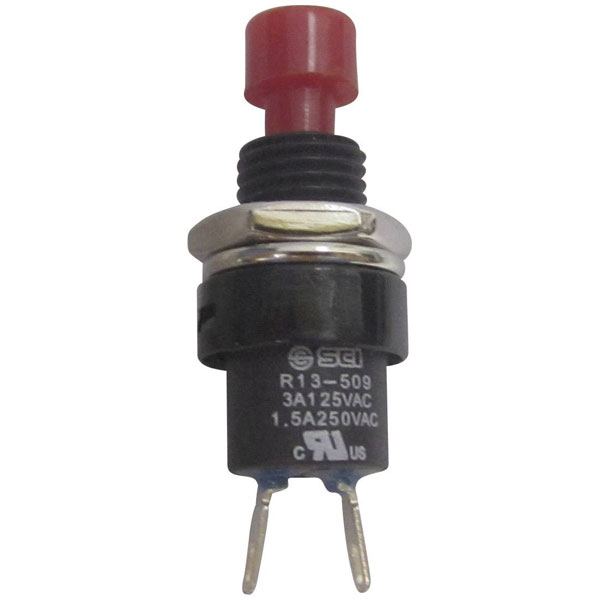

The TruComponents 78-1962 Red Pushbutton is a high-quality, momentary switch designed for reliable performance in various applications. Rated at 250 V AC and 1.5 A, this pushbutton features a single-pole, single-throw (SPST) configuration with an Off/(On) function. Its robust construction ensures durability, while the sleek design allows for easy integration into control panels and electronic devices. Ideal for both commercial and industrial use.
Type Pushbutton
Board thickness (max.) 3mm
Casing/button colour Red
Connection Solder pins
Contact resistance max. 50mΩ
Contact type 1 maker
Dielectric strength 1000 V/AC/60 s
Functions momentary
Insulation resistance min 100 MΩ/500V DC
Key type Red
Lighting type None
Misc Attribute TC-R13-509A-05RT
Recess diameter 7mm
RoHS-compliant Yes
Switch position 1 x Off/(On)
Switch/button features Protruding
Switching current (max.) 1.5A
Switching voltage 250V AC
