TruComponents 781947 Pushbutton ,Panel Mount,Off/(On),SPST-NO,Solder

TruComponents
Order Code:

78-1947

Brand: TruComponents MPN: 781947 EAN-13: 4064161299297
Qty Unit Price (Ex VAT)
2+ £2.01
5+ £1.96
10+ £1.91
25+ £1.87
50+ £1.83
100+ £1.79
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
608 in stock, despatched in 4 working days

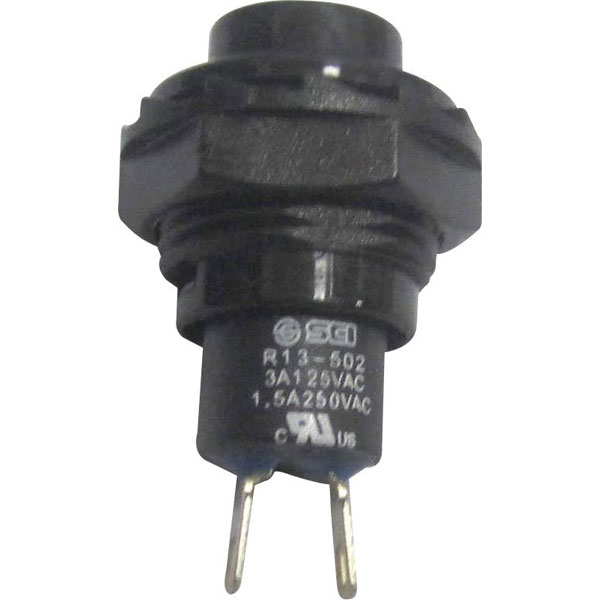

The TruComponents 78-1947 Black, Round Pushbutton is a robust and versatile momentary switch, rated at 250V AC and 1.5A, with solder tags for easy installation. Featuring a single off/on configuration, for precise and reliable control for a wide range of applications. Constructed with high-quality materials, this pushbutton is designed for durability and consistent performance, making it an excellent choice for both professional and DIY projects.
Type Pushbutton
Contact Configuration 1 x Off/(On)
Switch Function 1 maker
Current Rating 1.5A
Board thickness (max.) 3mm
Casing/button colour Black
Connection Solder pins
Contact Resistance max. 50mΩ
Dielectric Strength 1000V AC
Insulation Resistance (500 V/DC) min. 100MΩ
Key Type Plastic black
Lighting type None
Misc Attribute TC-R13-502A-05BK
Recess diameter 12.7mm
Switch/button features Protruding
Switching Voltage 250V AC
