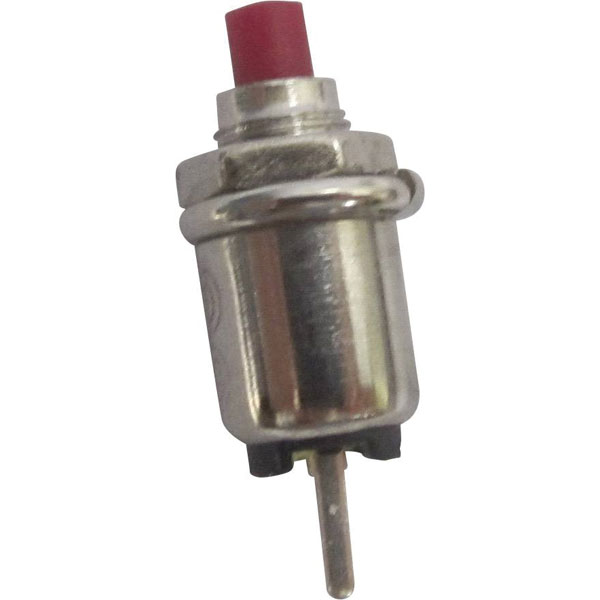

TruComponents 781938 Pushbutton ,Panel Mount,Off/(On),SPST-NO,Solder

The TruComponents 78-1938 Pushbutton is a reliable and durable momentary switch, ideal for various electronic applications. Rated at 125V AC and 0.5A, this pushbutton features a protruding red button cap and solder pins for easy installation. Its robust construction ensures long-lasting performance, making it a perfect choice for control panels and other demanding environments.

Type	Pushbutton
Contact Configuration	1 x Off/(On)
Switch Function	1 maker
Current Rating	500mA
Mounting	Panel
Voltage Rating	125V
Illumination	N/A
Panel Cutout Dimensions	N/A
Board thickness (max.)	4mm
Casing/button Colour	Red
Connection	Solder pins
Contact Resistance	max. 50mΩ
Dielectric Strength	1500 V/AC/60 s
Insulation Resistance	min 100 MΩ/500V DC
Lighting Type	None
Material	Plastic
Misc Attribute	TC-R13-81A-05RT
Recess Diameter	5.2mm
Switch/button features	Protruding
Switching Voltage	125V AC
