TruComponents 781926 Pushbutton ,Panel Mount,Off/(On),SPST-NO,Solder Pins

TruComponents
Order Code:

78-1926

Brand: TruComponents MPN: 781926 EAN-13: 4064161299051
Qty Unit Price (Ex VAT)
3+ £1.40
5+ £1.37
10+ £1.33
25+ £1.30
50+ £1.27
100+ £1.25
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,284 in stock, despatched in 4 working days

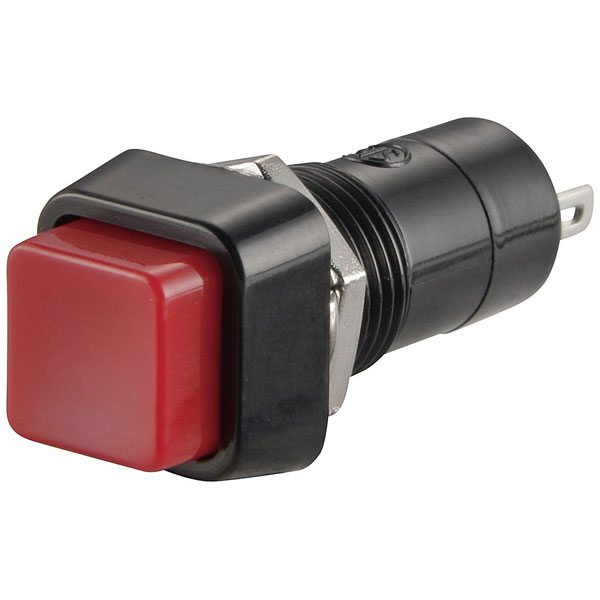

The TruComponents 78-1926 Pushbutton is a reliable and durable momentary switch, ideal for panel mounting in various electronic applications. Rated at 250V AC and 1.5A, this pushbutton features a protruding red button cap, and solder tags for easy installation. Its robust phenol construction ensures long-lasting performance, making it a perfect choice for control panels and other demanding environments.
Type Pushbutton
Contact Configuration 1 x Off/(On)
Switch Function 1 maker
Current Rating 1.5A
Board thickness (max.) 4mm
Casing/button colour Red
Connection Solder pins
Contact Resistance max. 50mΩ
Dielectric Strength 1000 V/AC/60 s
Insulation Resistance min 500 V/DC/100MΩ
Lighting type None
Material Phenol
Misc Attribute TC-R13-23A-05RT
Recess diameter 12.2mm
Switch/button features Protruding
Switching Voltage 250V AC
