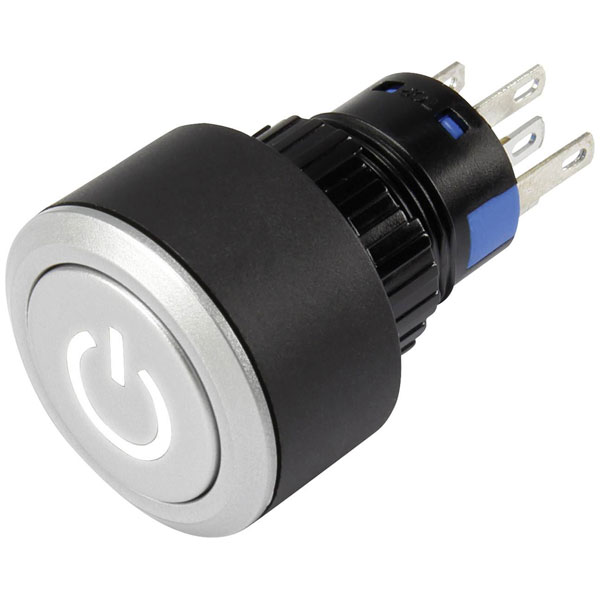

TruComponents 781913 Pushbutton ,Panel Mount,Off/(On),NO/NC,Solder,IP65

The TruComponents 78-1913 Pushbutton is a durable and reliable momentary switch, ideal for various industrial applications. Rated at 250V AC and 3A, this pushbutton features a robust polycarbonate casing and a white LED power indicator. With an IP65 rating, it offers excellent protection against dust and water ingress. The pushbutton is designed for a lifespan of 50,000 cycles, ensuring consistent performance. Its sleek design and high functionality make it a perfect choice for control panels and other demanding environments.

Type	Pushbutton
Board thickness (max.)	6mm
Bulb Type	LED (monochrome)
Button diameter	21.8mm
Casing/button colour	Steel
Colour	White
Connection	Type C CEE 7/16 plug 2.8 mm
Durability	50000 cycles
Electrical lifespan	50000 cycles
Functions	momentary
IP Rating	IP65
Lighting type	Power symbol
Material	Polycarbonate (PC)
Max. temperature	+55°C
Min. temperature	-20°C
Misc Attribute	LAS1-AWY-11T/W/12V/P
Print motif	None
Recess depth	38.9mm
Recess diameter	22mm
Shape	Round
Switch position	1 x Off/(On)
Switching current (max.)	3A
Switching Voltage	250V AC
