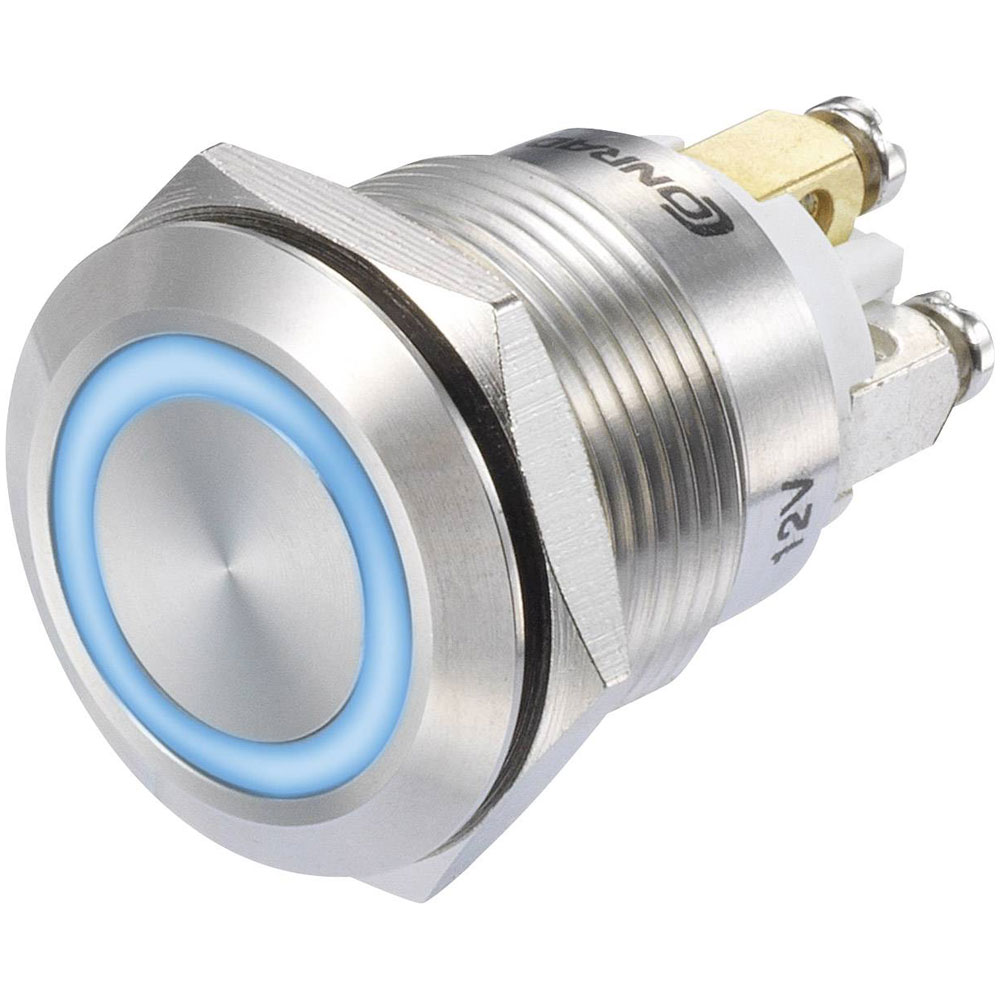

TruComponents 781898 Pushbutton ,Panel Mount,Off/(On),SPDT,Scr/term,IP65

The TruComponents 78-1898 Pushbutton Switch is a high-quality, momentary switch designed for various electrical applications. Key features include a maximum switching current of 3A at 48V DC, a vibrant blue LED indicator, and a robust stainless steel construction. The switch is IP65 rated for dust and water resistance, ensuring reliable and long-lasting performance. Its flat actuator button and screw terminals facilitate easy installation, making it an excellent choice for both industrial and consumer electronics.

Type	Pushbutton
Contact Configuration	1 x On/(On)
Switch Function	1 maker
Current Rating	3A
Mounting	Panel
Illumination	Blue
Panel Cutout Dimensions	N/A
Board thickness (max.)	10mm
Bulb Type	LED (monochrome)
Button Diameter	22mm
Casing/button Colour	Steel
Colour	Blue
Connection	Screws
Durability	1 000 000 cycles
Electrical lifespan	50000 cycles
IP Rating	IP65
Lighting Type	Circular lighting
Material	Steel
Maximum Temperature	+55°C
Min. temperature	-20°C
Misc Attribute	GQ19F-10E/B/12V/S
Recess depth	30mm
Recess Diameter	19mm
Switch/button features	Protruding
Switching Voltage	48V DC
