TruComponents 78-0904 Microswitch,On/(On),16A,Short Roller,Quick Connect

TruComponents
Standard range
Order Code:

78-0904

Brand: TruComponents MPN: 78-0904 EAN-13: 4064161090177
Qty Unit Price (Ex VAT)
1+ £2.85
10+ £2.59
25+ £2.38
50+ £2.20
100+ £2.04
200+ £1.90
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2,394 in stock, despatched in 4 working days

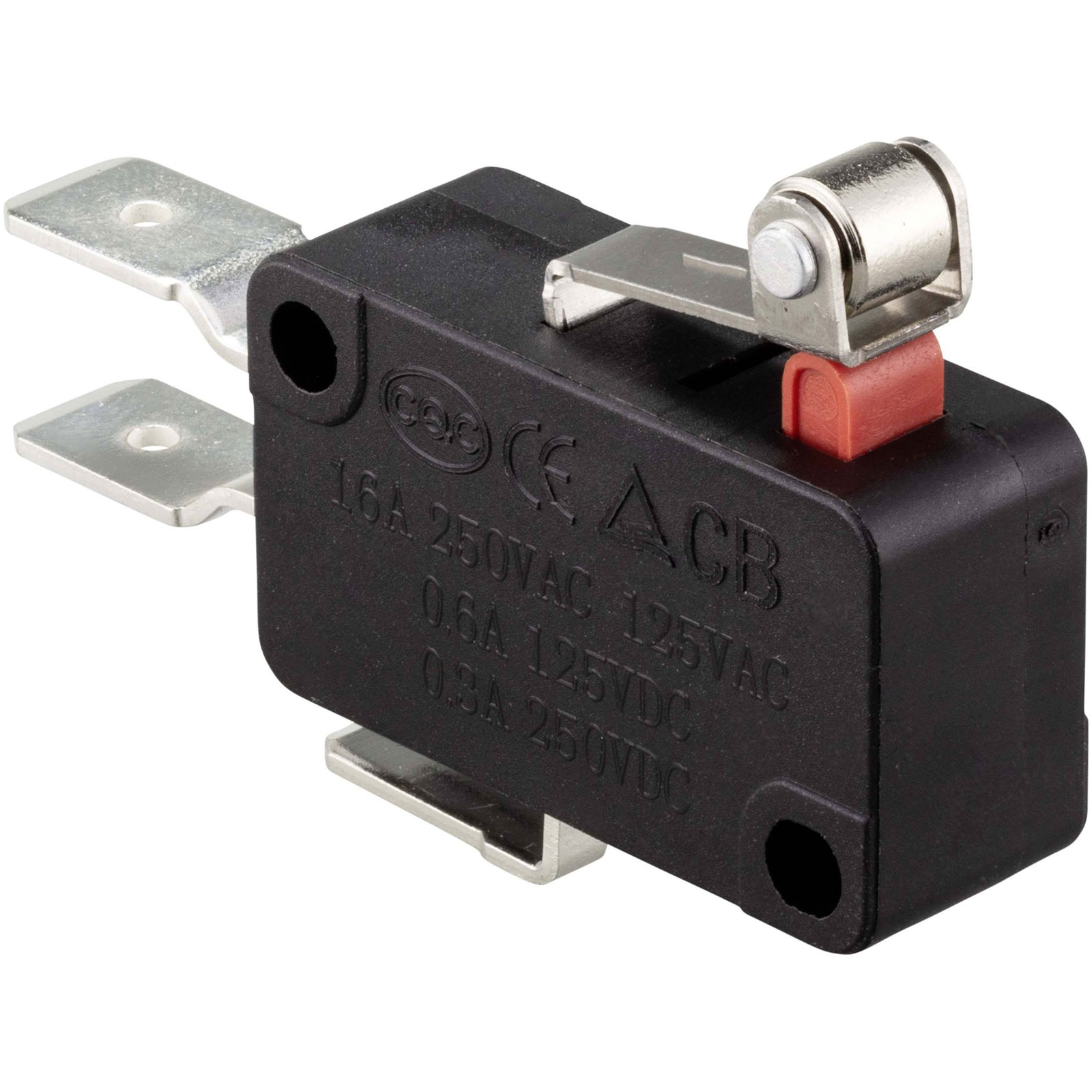

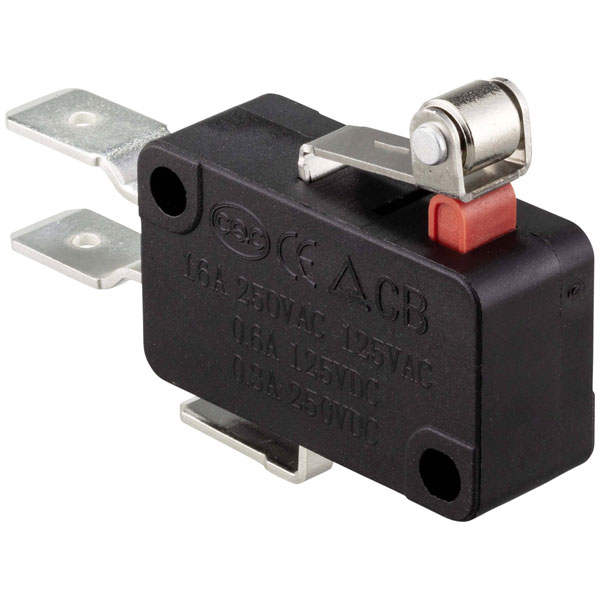

The TruComponents 78-0904 microswitch is a high-quality component designed for a wide range of electrical applications.

It features a momentary action with a 1 x On/(On) configuration, supporting a maximum current of 16A at 250V AC. The switch is equipped with a short roller lever actuator and quick connect terminals for easy installation.

Its robust construction ensures reliable and long-lasting performance, making it an excellent choice for both industrial and consumer electronics.


Type Microswitch
Connection Type C CEE 7/16 plug 6.3 mm
Contact type 1 change-over
Dim (L x W x H) 10.3 x 27.8 x 15.9 mm
Electrical lifespan 50000
Functions momentary
Height 15.9mm
Length 10.3mm
Max. temperature 105°C
Min. temperature -25°C
Misc Attribute TC-9122136
Operation type Lever
Plastic free packaging Plastic-free packaging
Switch position 1 x On/(On)
Switching current (max.) 16A
Switching voltage 250V AC
Width 27.8mm
