TruComponents 751502 Toggle switch Panel Mount On/On SPDT Solder Terminal

TruComponents
Order Code:

75-1502

Brand: TruComponents MPN: 751502 EAN-13: 4064161162027
Qty Unit Price (Ex VAT)
2+ £3.50
5+ £3.11
10+ £2.86
25+ £2.69
50+ £2.54
100+ £2.46
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,827 in stock, despatched in 4 working days

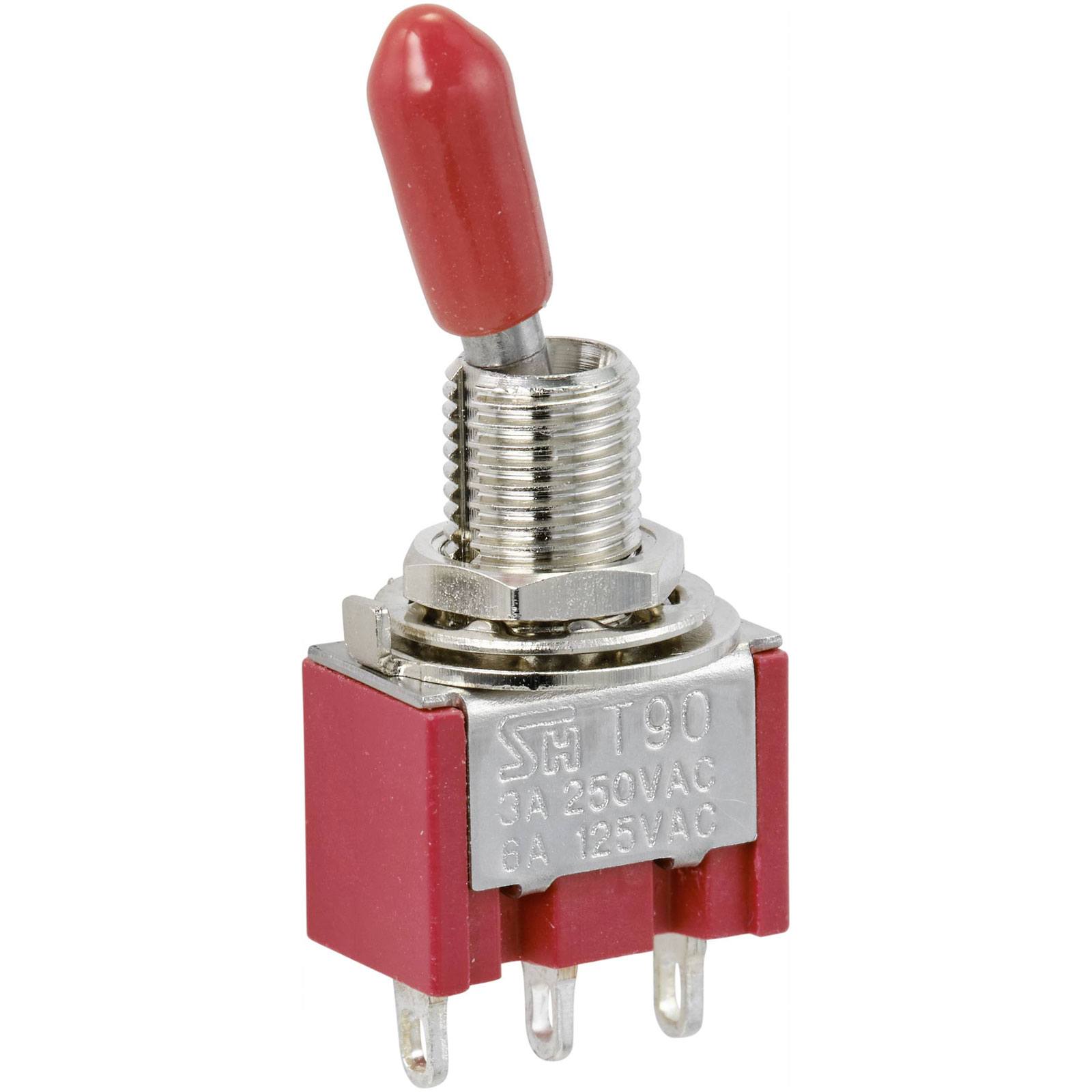

The TruComponents 751502 Toggle Switch is a high-quality, reliable component designed for a wide range of applications. This Single Pole Double Throw (SPDT) switch offers an On/On functionality, making it ideal for controlling two different circuits with a single switch. The chrome-plated toggle has a removable red insulating sleeve.
Contact Configuration 1 x On/On
Switch Function latch
Current Rating (Amps) 3A
Actuator Type Steel lever (insulated)
Termination Style Solder tag
Casing/button colour Red
CS 4.7mm
Dim (L x W x H) 13 x 7.9 x 32.85 mm
Height 32.85mm
Industrial packaging Compatible with
Length 13mm
Lighting type None
Max. temperature 80°C
Min. temperature -10°C
Misc Attribute TC-9353980
Number of Pins 3
Recess depth 13.46mm
Recess diameter 6.35mm
Switching Voltage 250V AC
Type Toggle switch
Width 7.9mm
