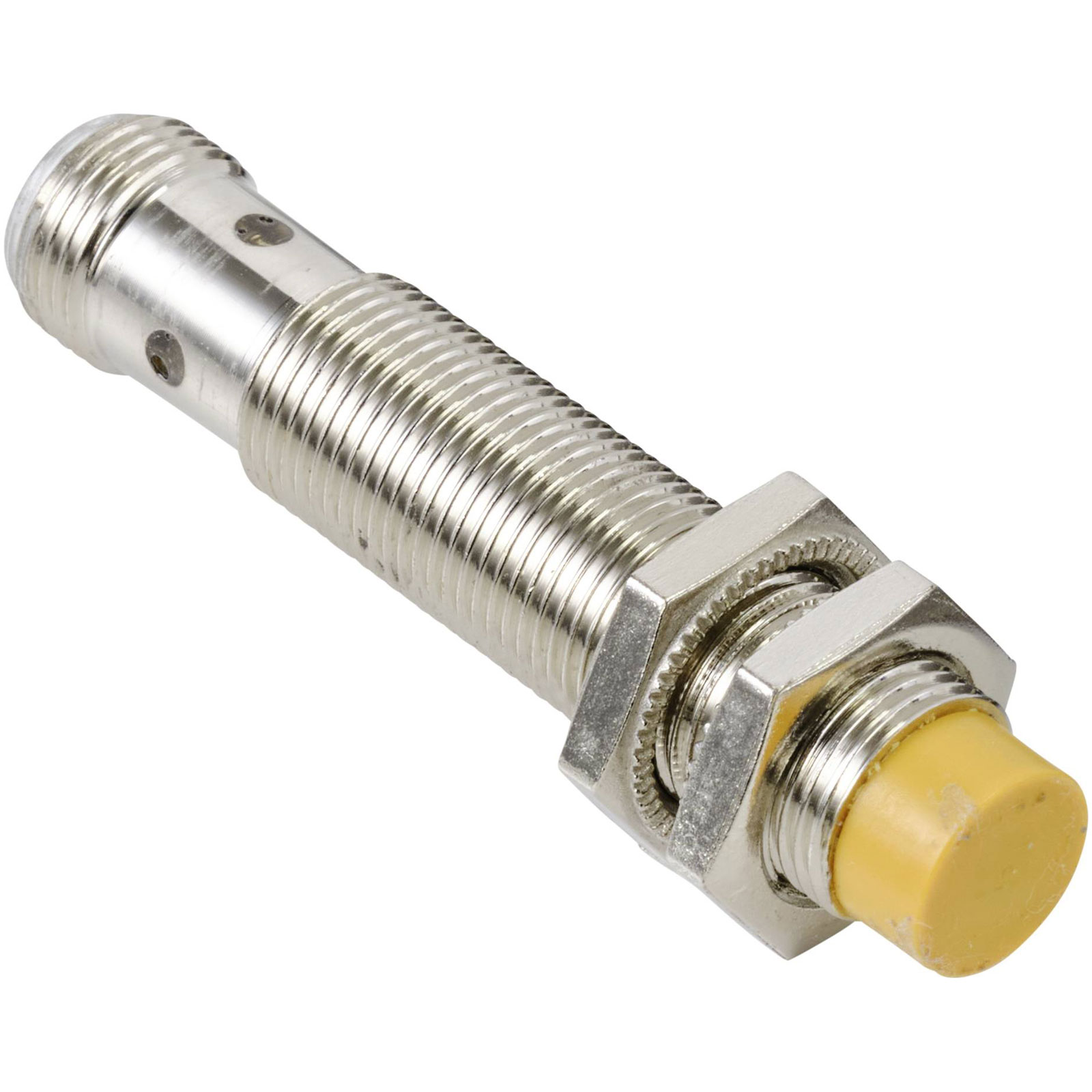

TruComponents 656564 proximity sensor M12 non-shielded PNP TC-9393036

Inductive proximity switch of the Basic series in the classic cylindrical form of nickel-plated brass. Due to the high quality and long service life, it is ideally suited for applications such as automats, production plants, automated storage systems, etc.

Type	Inductive Proximity Switch
(Ø)	12mm
Connector	M12 plug (4-pin)
Dim	(Ø x L) 12 mm x 61.8 mm
Enclosure material	Brass
Installation type	non-shielded
IP Rating	IP67
Length	61.8mm
Material properties	nickel plated
Max. operating voltage	36V DC
Maximum Temperature	+80°C
Min. operating voltage	6V DC
Min. temperature	-30°C
Misc Attribute	TC-9393036
Operating Voltage	6 - 36 V DC
Output Type	PNP
Plastic free packaging	Plastic-free packaging
Size	M12
Switching distance (max.)	4mm
Switching Frequency	1800Hz
