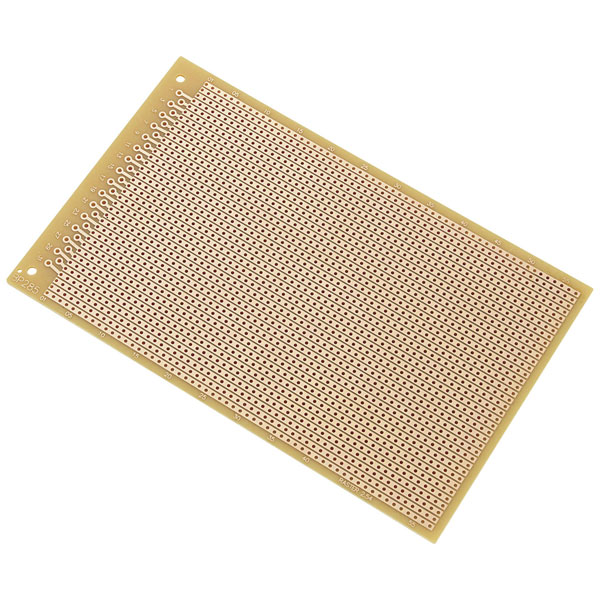

TruComponents 654978 Eurocard PCB Phenolic 160 mm x 100 mm 35 µm,Pitch:2.54 mm

Discover the Eurocard PCB Phenolic, measuring 160 mm x 100 mm with a precision of 35 µm and a pitch of 2.54 mm. This high-quality printed circuit board is designed for optimal performance and reliability in various electronic applications. Its phenolic material ensures durability and excellent thermal stability, making it an ideal choice for both prototyping and production. Elevate your projects with the Eurocard PCB, where quality meets functionality. Eurocard for 31-pin power strip connector.

Type	Eurocard PCB
Hole Diameter	1mm
Thickness	1.6mm
Base Material	Phenolic paper
Copper coating (thickness)	35µm
CS	2.54mm
Dim	(L x W) 160 mm x 100 mm
Length	160mm
Misc Attribute 1	Solder strip grid
Misc Attribute 2	single sided
Misc Attribute 3	SU527466
Width	100mm
