Reliable data transfer for your network
The Tru Components network cable category 6A ensures fast data transfer rates of up to 10000 MBit/s, 10x faster than category 6 and 100x faster than category 5. Means no more sluggishness during high data volume transfers such as HD streaming and some server applications. Which makes this highly flexible patch cable a viable Wi-Fi alternative. The advantages are obvious: No radiation exposure, maximum security, but above all no speed loss - whatever is fed on one side, comes out on the other side.

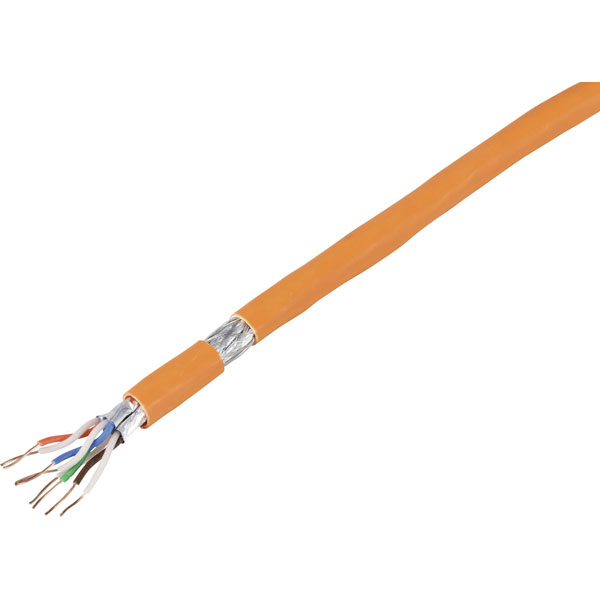

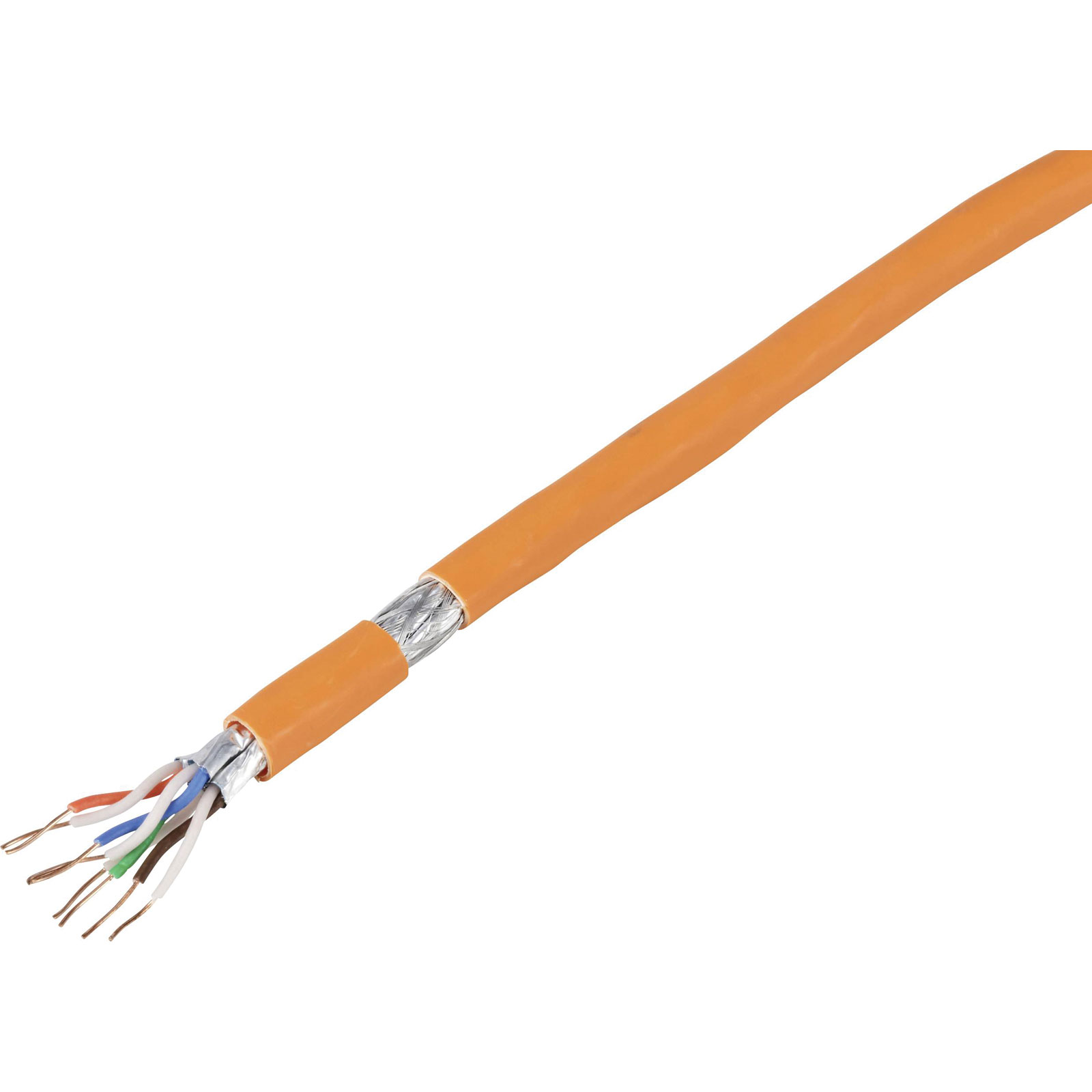

Noise Supression Shielding (S/FTP)
The Tru Components CAT6A network cables comes with multi-layer shielding. Each pair of cores is shielded by metal film. The cable as a whole comes with a wire mesh jacket. This type of shielding prevents e.g. cross-talk from cables running parallel to each other, thus ensuring data transfer without interference caused by external sources.
Copper Core
The core is the key element of any cable. This one uses copper to ensure optimum data transfer. In addition to low impedance, copper stands for mechanical resilence, excellent bendability and durability. Moreover, copper wire resistance ratings are much lower than those of cables with cheap steel (CCS) or aluminum (CCA) conductors. All of which makes renkforce cables the perfect choice for a speedy and safe data transfer.
| Type |
Network Cable |
| AWG max. |
23 |
| Cross section |
4 x 2 x 0.24 mm² |
| Cross section (each core) |
0.24mm² |
| Factory colour |
Orange |
| Insulation material |
Foam Skin PE |
| Manufacturer part # |
TC-7812644 |
| Max. frequency |
500MHz |
| Max. length sold by the metre |
50m |
| Max. temperature range (fixed installation) |
75°C |
| Max. temperature range (flexible installation) |
50°C |
| Min. temperature range (fixed installation) |
-20°C |
| Min. temperature range (flexible installation) |
0°C |
| Misc Attribute |
TC-7812644 |
| No. of leads |
8 |
| Outside Ø |
7.60mm |
| RoHS-compliant |
Yes |
| Shielding |
S/FTP |
| Specification |
CAT 6A |
| Standards |
CPR-Dca certified |
| Twisted pair cabling (part 1) |
Yes (1) |
