TruComponents 41120 Cable mount Self-adhesive Ø4.80mm 4x thread Clear 1pcs

TruComponents
Standard range
Order Code:

04-1120

Brand: TruComponents MPN: 41120 EAN-13: 2050004980622
Qty Unit Price (Ex VAT)
1+ £0.141
5+ £0.133
10+ £0.126
25+ £0.120
50+ £0.114
100+ £0.109
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
29,590 in stock, despatched in 4 working days

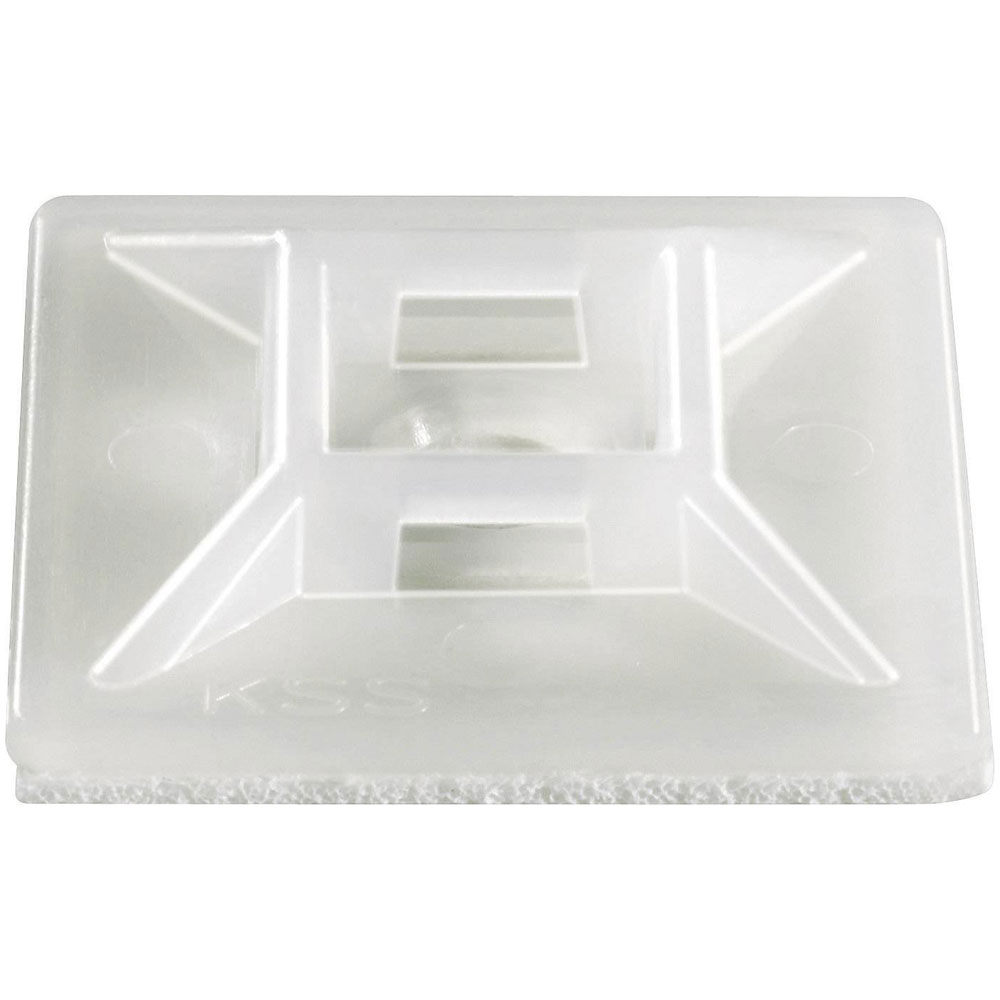

These 28.6 x 28.6mm self-adhesive base can be used to hold cable ties with which the items to be bundled are secured. The mounting base, can be threaded from all 4 sides. Maximum cable tie width is 5.5mm. Cable bundle diameter is 4.8mm (max.). The adhesive base is also equipped with mounting holes for screw mounting.
Type Cable mount
Bundle Ø (max.) 4.80mm
Bundle Ø range 4.80 mm (max)
Factory colour Transparent
Fastening method Self-adhesive
Halogen-free No
Height 5.3mm
Length 28.6mm
Manufacturer part # 1593044
Material Polyamide 6.6
Max. cable tie width 5,5 mmmm
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute TC-HC102203
Mounting Ø (max.) 5mm
Mounting Ø (min.) 5mm
RoHS-compliant Yes
Width 28.6mm
