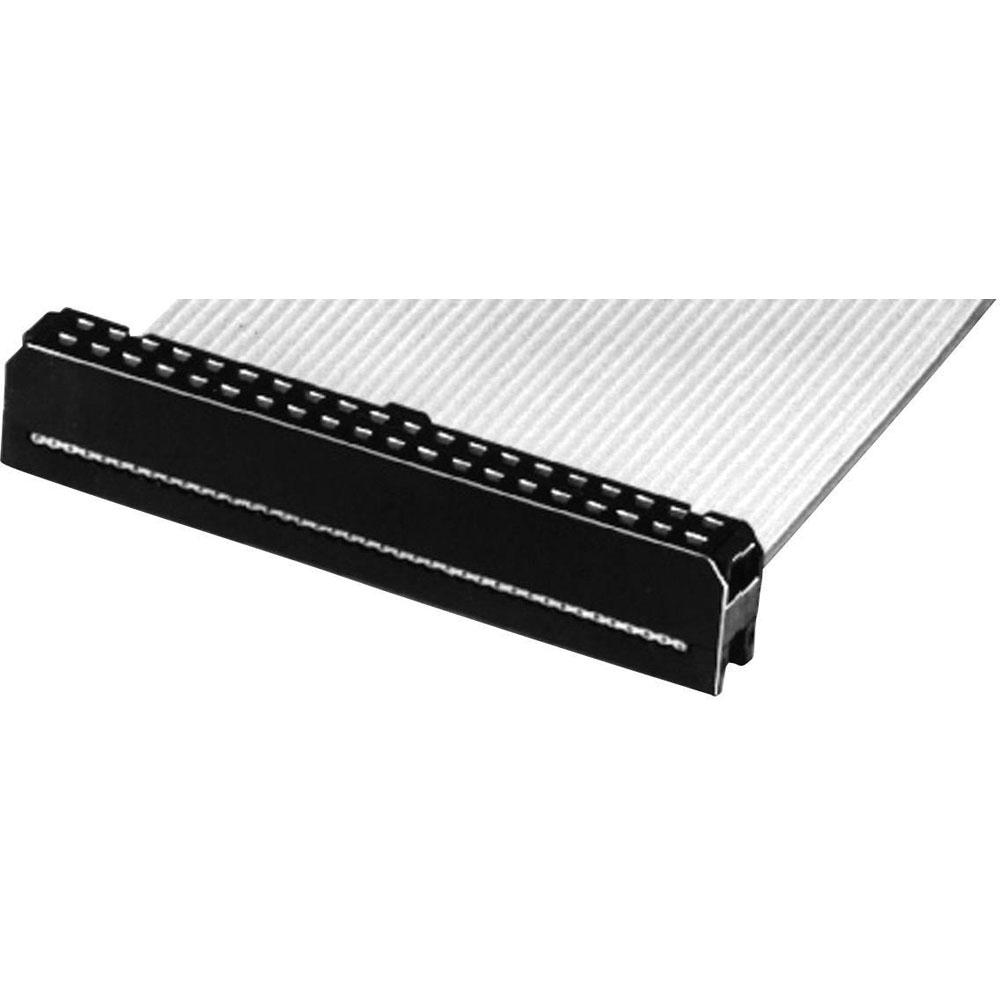

TruComponents 191673 Pin connector Pitch:2.54mm,pins: 26 2 Rows

TRUCOMPONENTS 191673 Pin Connector, featuring a reliable 2.54mm pitch and 26 pins across 2 rows for versatile connections. Engineered for maximum durability and performance, this connector ensures stable and secure fittings for your circuit board needs

Type	Female cable Mount IDC Connector
Number of Ways	26
Pitch	2.54mm
Number of Rows	2
Mounting Type	Cable (IDC)
Strain Relief	None
Board contact surface	Gold plated
Case Material	Thermoplastic material
Colour	Black
Connection	Cut & Clip
Connector contact surface	Gold plated
Connector Type	Power strip
Contact Material	Copper alloy
Cross Section	2.54mm
Dimensions	(L x W x H) 6 x 37.62 x 13.55 mm
Height	13.55mm
Insulation Material	Thermoplastic material
Length	6mm
Maximum Temperature	+105°C
Min. temperature	-40°C
Misc Attribute 1	TC-028241-26-10-60
Misc Attribute 2	Straight
Nominal Current	1A
Nominal Voltage	250V AC
Pins per row	13
Total number of pins	26
Width	37.62mm
