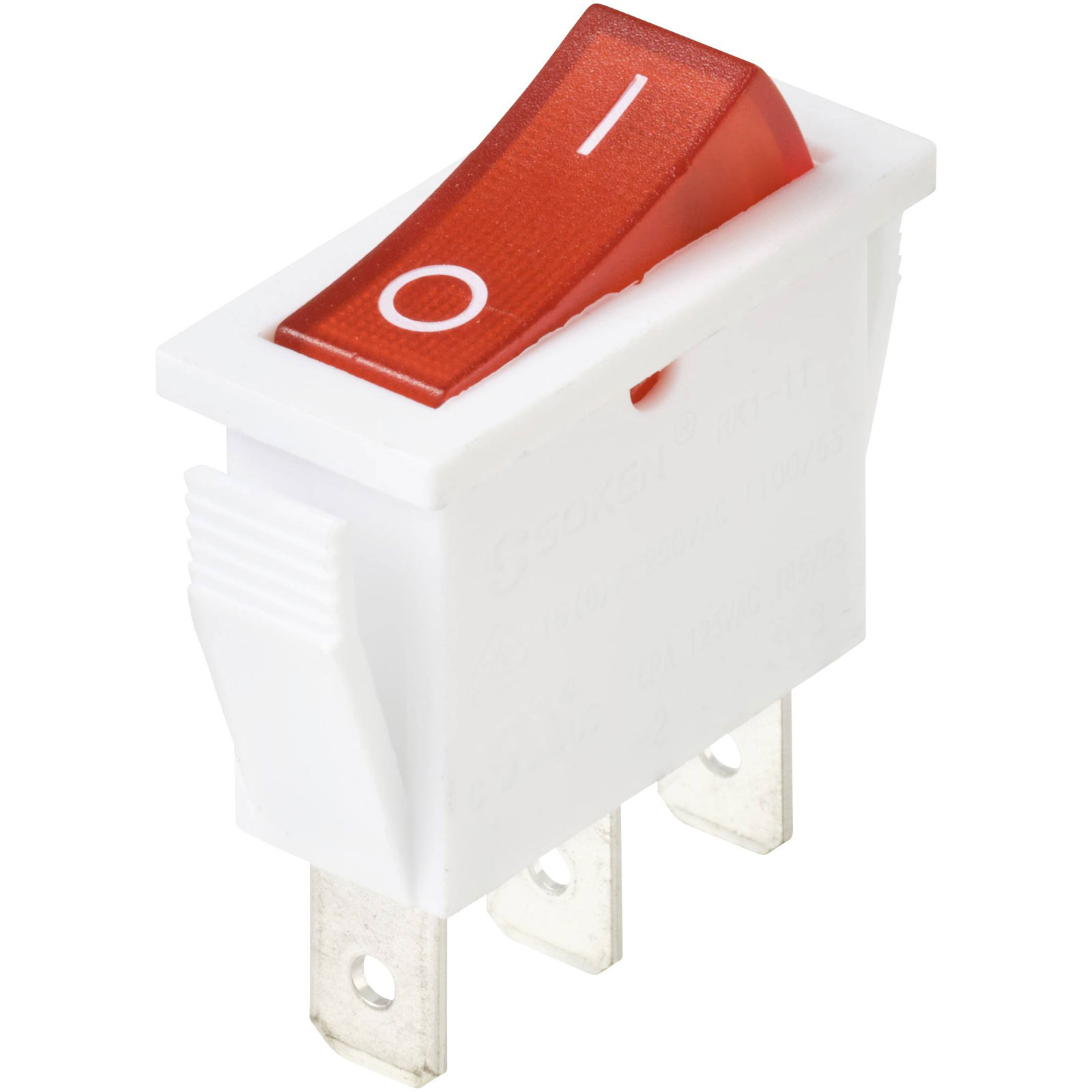

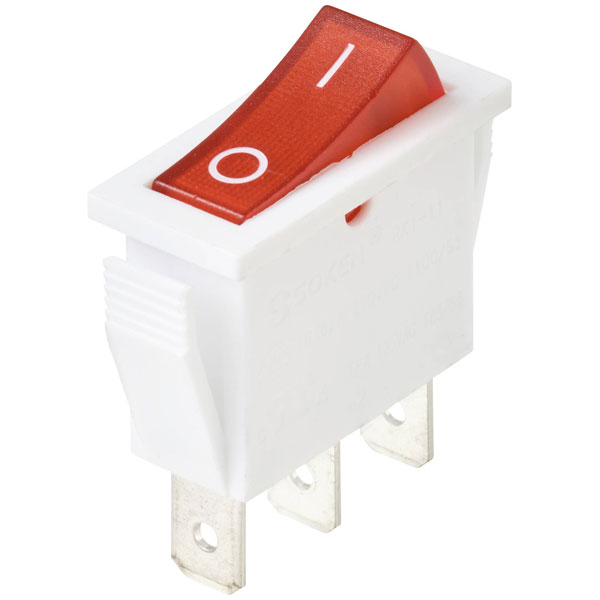

TRU COMPONENTS TC-13599548 Toggle switch 250V 16A Off/On latch

TRU COMPONENTS TC-13599548 is a robust toggle switch designed for reliable performance in electrical circuits. As a rocker switch rated for 250 V AC and 16 A, it supports high-capacity applications with an Off/On latch configuration, ensuring firm and precise switching action. This single-pole device is commonly employed in various engineering settings, such as industrial equipment, control panels, and appliance controls, where its durable construction aids in maintaining operational integrity under frequent use. Additionally, the switch's build quality and specifications make it suitable for integration into systems requiring dependable manual circuit control.

Mounting Type	Panel mount
Contact Configuration	SPDT
Switch Function	On-Off
Current Rating (Amps)	16A
Actuator Marking	0/1
Illumination Type	Area illumination
Illumination Colour	Blue
Bulb Type	Glow lamp
Colour	Red
Contact Material	Cu-alloy, nickel plated
Contact Resistance	<20mO
Content	1
Dimensions	(L x W x H) 30.5 x 13.8 x 38 mm
Durability	300,000 switching cycles
Electrical lifespan	300,000 switching cycles
Front panel cut-out	10.3 x 28mm
Front panel thickness	2mm
Height	38mm
Length	30.5mm
Material	Thermoplastic
Max. temperature	80°C
Min. temperature	-10°C
Number of Pins	3
Print motif	0/I
Product Type	Toggle switch
Switch position	1 x Off/On
Type	TC-13599548
Voltage Rating	250V AC
Width	13.8mm
