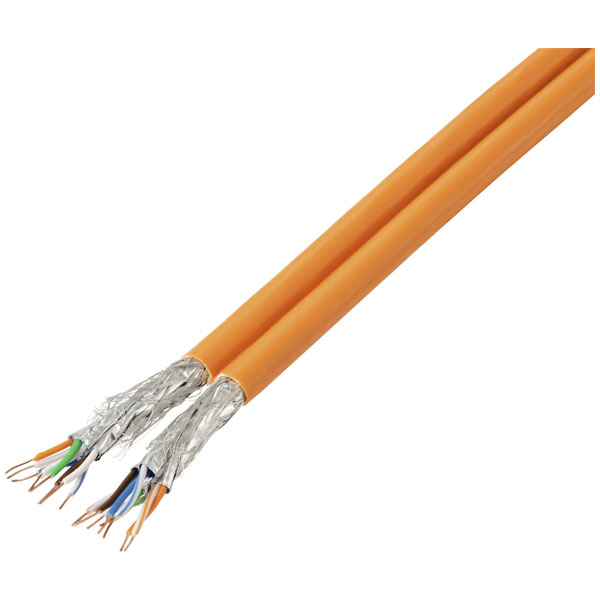

TRU COMPONENTS TC-13577064 Network cable CAT 7 S/FTP Orange 100 m Unassembled

TRU COMPONENTS TC-13577064 is a high-performance network cable designed for demanding networking applications. As a Category 7 S/FTP cable, it features a double-shielded design with foil shielding for each pair and an overall braided shield, providing high levels of protection against electromagnetic interference. This cable includes eight conductor wires, arranged in four twisted pairs with a conductor size of 0.24 mm², ensuring robust data transmission with minimal signal loss. The cable's 100-metre length and vibrant orange colour make it suitable for both extensive installations and easy identification in complex networking environments. Ideal for applications requiring high-speed, reliable data communication, such as data centres, server rooms, and advanced office networks, this cable is designed to support data rates of up to 10 Gbps over Ethernet.

Colour	Orange
Length	100m
LAN Category	CAT 7
Shielding	S/FTP
AWG max.	23
Conductor Cross Section	4 x 2 x 0.24 mm² + 4 x 2 x 0.24 mm²
Cross section (each core)	0.24mm²
Height	7.6mm
Insulation Material	Foam Skin PE
Max. frequency	1000MHz
Max. temperature range (fixed installation)	+75°C
Max. temperature range (flexible installation)	+75°C
Min. temperature range (fixed installation)	-20°C
Min. temperature range (flexible installation)	-20°C
No. of leads	8
No. of leads (part 2)	8
Product Type	Network cable
Specification	CAT 7
Twisted pair cabling (part 1)	Yes (1)
Twisted pair cabling (yes/no)	Yes (1)
Type	TC-13577064
