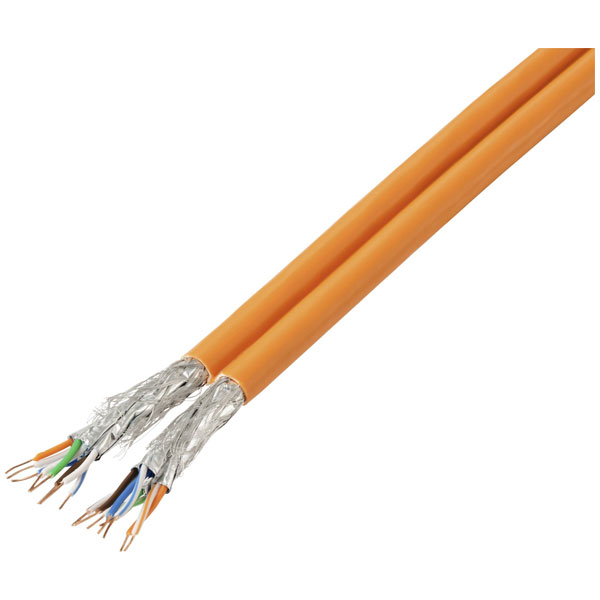

TRU COMPONENTS TC-13577060 Network cable CAT 7 Orange 50 m Unassembled

TRU COMPONENTS TC-13577060 is a CAT 7 network cable that features an S/FTP construction, offering superior shielding with its four pairs of twisted copper wires, each measuring 0.24 mm². This unassembled cable spans 50 metres in length and is encased in a durable orange sheath, making it suitable for high-performance networking and data transmission applications. The cable is engineered to support frequencies up to 600 MHz, making it ideal for use in data centres, server rooms, and other environments requiring robust network infrastructure. It also complies with stringent standards to ensure low crosstalk and interference, providing reliable and efficient communication for modern digital systems.

Colour	Orange
Length	50m
LAN Category	CAT 7
Shielding	S/FTP
AWG max.	23
Conductor Cross Section	4 x 2 x 0.24 mm² + 4 x 2 x 0.24 mm²
Cross section (each core)	0.24mm²
Height	7.6mm
Insulation Material	Foam Skin PE
Max. frequency	1000MHz
Max. temperature range (fixed installation)	+75°C
Max. temperature range (flexible installation)	+75°C
Min. temperature range (fixed installation)	-20°C
Min. temperature range (flexible installation)	-20°C
No. of leads	8
No. of leads (part 2)	8
Product Type	Network cable
Specification	CAT 7
Twisted pair cabling (part 1)	Yes (1)
Twisted pair cabling (yes/no)	Yes (1)
Type	TC-13577060
