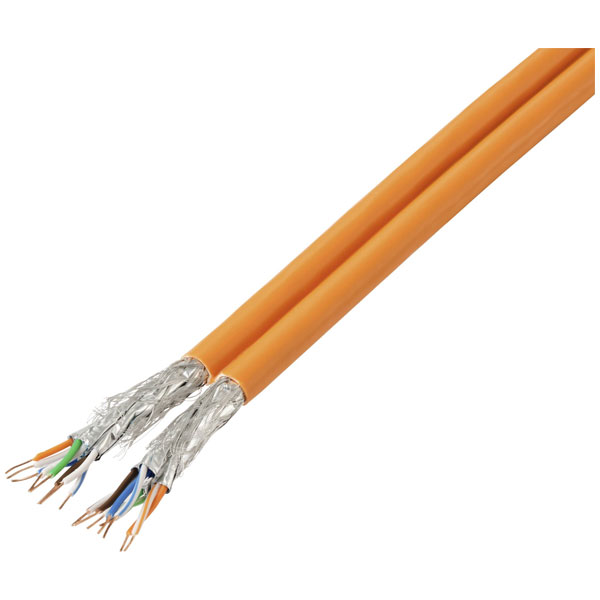

TRU COMPONENTS TC-13576748 Network cable CAT 7a S/FTP Orange 500 m

TRU COMPONENTS TC-13576748 is a high-performance network cable designed to meet the demanding requirements of modern data transmission applications. This CAT 7a S/FTP cable features an advanced shielding mechanism, utilising four pairs of twisted copper conductors, each with a cross-sectional area of 0.27 mm², ensuring minimal interference and maximum data integrity. The cable’s S/FTP designation indicates that each pair of wires is shielded with foil, and an overall braid provides additional protection against electromagnetic interference. The bright orange jacket enhances visibility and identification in complex installations, and it is supplied on a 500 metre reel for large-scale deployments. Suitable for data centres, high-speed networking installations, and telecommunications infrastructure, the TC-13576748 enables robust and reliable data communication needed for Ethernet networks supporting high throughput and low latency.

Colour	Orange
Length	500m
LAN Category	CAT 7a
Shielding	S/FTP
AWG max.	23
Conductor Cross Section	4 x 2 x 0.27 mm² + 4 x 2 x 0.27 mm²
Cross section (each core)	0.27mm²
Height	7.7mm
Insulation Material	Foam Skin PE
Max. frequency	1300MHz
Max. temperature range (fixed installation)	+75°C
Max. temperature range (flexible installation)	+75°C
Min. temperature range (fixed installation)	-20°C
Min. temperature range (flexible installation)	-20°C
No. of leads	8
No. of leads (part 2)	8
Product Type	Network cable
Specification	CAT 7a
Twisted pair cabling (part 1)	Yes (1)
Twisted pair cabling (yes/no)	Yes (1)
Type	TC-13576748
