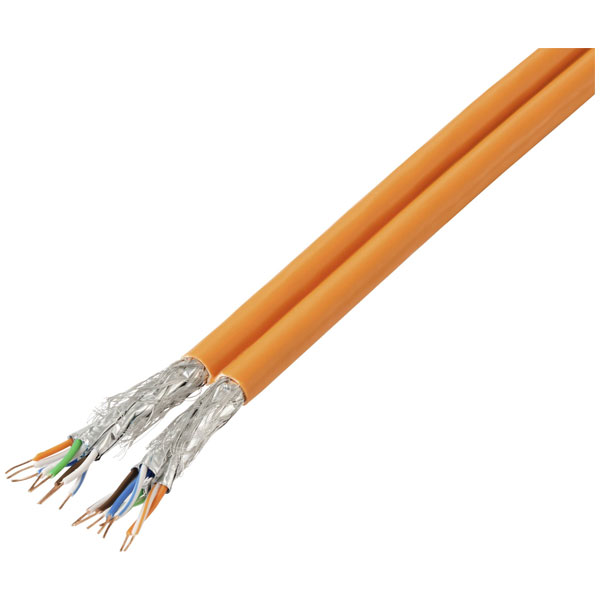

TRU COMPONENTS TC-13576744 Network cable Cat 7 Orange 500 m Unassembled

TRU COMPONENTS TC-13576744 is a high-performance networking cable specifically designed to meet the demanding requirements of modern data transmission systems. This Category 7 cable features S/FTP shielding and consists of 4 pairs of twisted copper conductors, each pair with a cross-sectional area of 0.24 mm², ensuring exceptional noise resistance and signal integrity. The cable comes unassembled and is 500 metres in length, providing flexibility and extensive reach for large-scale installations. Its orange outer sheath facilitates easy identification and management within structured cabling environments. Typical engineering applications include data centres, large-scale enterprise networks, and mission-critical systems where reliable and high-speed data transmission is paramount.

Colour	Orange
Length	500m
LAN Category	CAT 7
Shielding	S/FTP
AWG max.	23
Conductor Cross Section	4 x 2 x 0.24 mm² + 4 x 2 x 0.24 mm²
Cross section (each core)	0.24mm²
Height	7.6mm
Insulation Material	Foam Skin PE
Max. frequency	1000MHz
Max. temperature range (fixed installation)	+75°C
Max. temperature range (flexible installation)	+75°C
Min. temperature range (fixed installation)	-20°C
Min. temperature range (flexible installation)	-20°C
No. of leads	8
No. of leads (part 2)	8
Product Type	Network cable
Specification	CAT 7
Twisted pair cabling (part 1)	Yes (1)
Twisted pair cabling (yes/no)	Yes (1)
Type	TC-13576744
