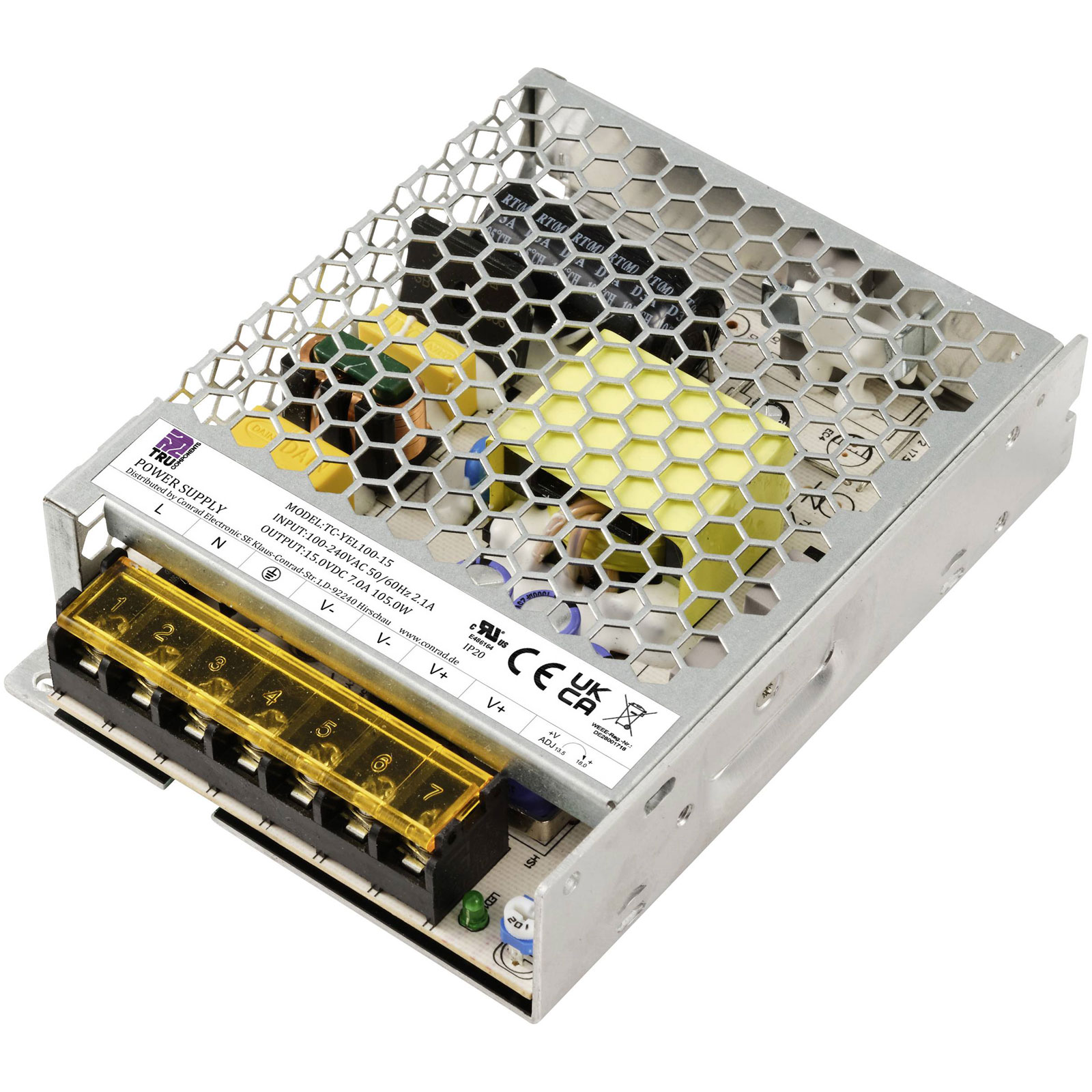

TRU COMPONENTS TC-13496744 Power supply unit 15 V DC 7 A 105 W

TruComponents TC-13496744, identified as a computer power supply unit, delivers a stable output of 15 V DC with a current capacity of 7 A, providing a total power output of 105 W. This power supply unit is engineered to cater to applications requiring precise voltage and current regulation, such as sensitive electronic equipment and computing devices. The unit is designed to ensure efficient energy conversion and reliable operation, even under fluctuating input conditions. Given its robust construction and dependable output characteristics, it is commonly implemented in industrial control systems, laboratory equipment, and custom-built computer assemblies where consistency and reliability are essential.

Type	Power supply unit
Output Voltage	15V DC
Power Rating	105W
Output Current	7A
Input Voltage	100 - 240V AC
Ambient temperature	25°C
Connection	Screw connector
Consumption (standby)	0.5W
Dimensions	(L x W x H) 129 x 97 x 30 mm
Efficiency to	88.5%
Height	30mm
Input frequency	50/60Hz
Input voltage (max.)	264V AC
Length	129mm
Max. operating temperature (derating)	70°C
Max. output current	7A
Min. input voltage	90V AC
Min. operating temperature (derating)	-20°C
No. of outputs	1
Output voltage (max.)	15V DC
Power	105W
Protection Class	I
Residual ripple	120 mVpp
Tolerance (output voltage)	+/-1%
Weight	340g
Width	97mm
